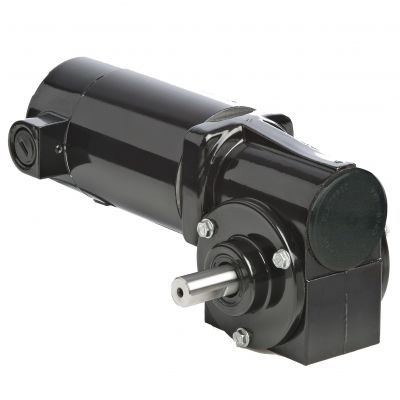

Bodine Electric, 1096, 1/32Hp, 86 Rpm, 20:1, 9.7Lb-in., Metric 24A4BEPM-3F, DC Right Angle Gearmotor

Bodine Electric, 1096, 1/32Hp, 86 Rpm, 20:1, 9.7Lb-in., Metric 24A4BEPM-3F, DC Right Angle Gearmotor

$588.61
$588.61
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1096, 1/32Hp, 86 Rpm, 20:1, 9.7Lb-in., Metric 24A4BEPM-3F, DC Right Angle Gearmotor

SPECIFICATIONS

Speed (rpm) 86
Rated Torque (Nm) 1.1
Rated Torque (lb-in) 9.7
Peak Torque (Nm) 4.6
Peak Torque (lb-in) 41
Power (Watts) 23
Power (HP) 1/32
Volts 180
Amps 0.18
Gear Ratio 20
Radial Load (N) 180
Radial Load (lbs) 40
Length XH (mm) 189
Length XH (inch) 7.4
Weight (kg) 2.4
Weight (lbs) 5.3
Connection Diagram 07410097
Product Type 24A4BEPM-3F
HPDecimal 0.0312
