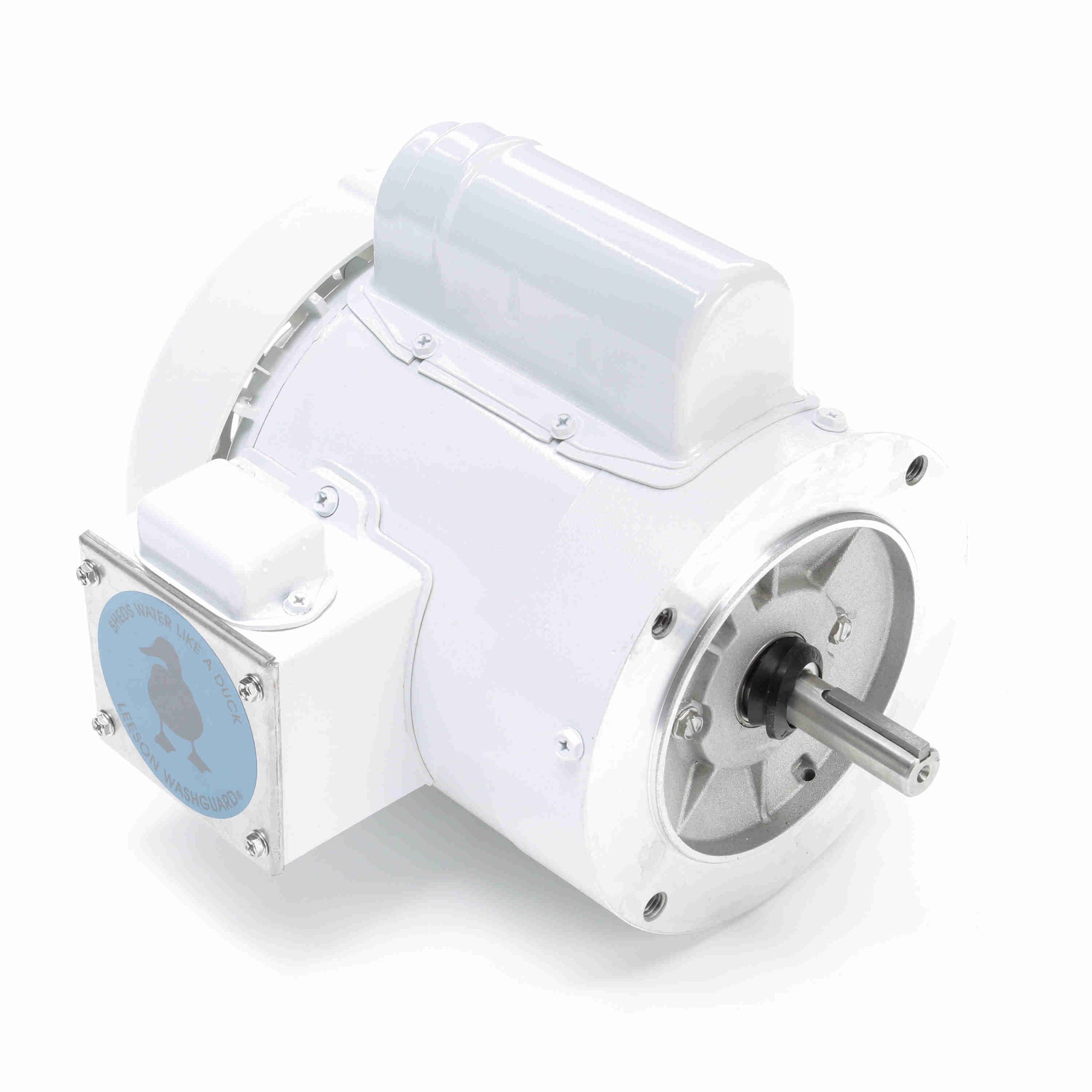

Leeson Electric 114311.00, 1/3 HP, 1800 RPM, 56C FR, TEFC, 115/208-230 Vac, 1 PH, C-Face Less Base, Washguard

114311.00, 1/3 HP, 1800 RPM, 56C FR, TEFC, 115/208-230 Vac, 1 PH, C-Face Less Base, Washguard.

Engineering Data

Volts 115 Volts 208-230 Volts
FL Amps 6.4 FL Amps 3.4-3.2 FL Amps
SF Amps 6.6 SF Amps 3.5-3.3 SF Amps

RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS Type CF
KW .246 SF 1.15 Phase 1
Frame 56C Design N KVA Code M
Ambient 40 Protection NOT Therm.Prot.
Insulation Class F Eff(75%) PF 55
Eff(100%) 62 CSA Y Bearing OPE 6203
UL Y-(LEESON UL REC) CE N Bearing PE 6205
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 26 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080279 Mounting ROUND Rotation SELECTIVE CCW
Shaft Diam. 5/8 IN Cust Part No. Packaging B
Winding C634260 Carton Label Leeson Washguard
Group 3 Iris
Paint WHITE - LEESON (EPOXY) Hazardous Location NONE Test Card 03
