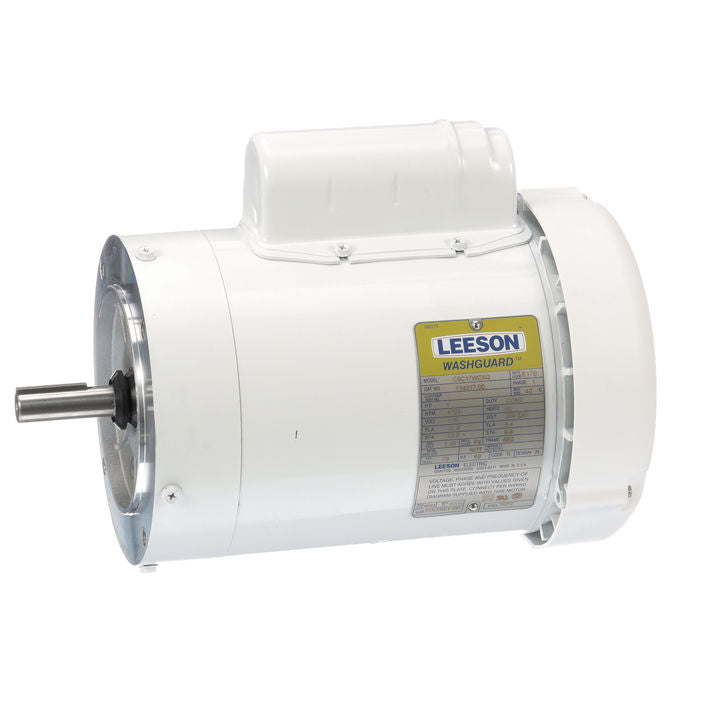

Leeson Electric 114317.00, 1 HP, 1800 RPM, 56C FR, TEFC, 115/208-230 Vac, 1 PH, C-Face Less Base, Washguard

114317.00, 1 HP, 1800 RPM, 56C FR, TEFC, 115/208-230 Vac, 1 PH, C-Face Less Base, Washguard

Engineering Data

Model : C6C17WC5GCatalog No : 114317.00Part Description : 1HP..C-FACE LESS BASE- 1725RPM.56.TEFC./V.1PH.60HZ.CONT.NOT.40C.1.15SF.ROUND.WASHGUARD.C6C17WC5GCategory : General PurposeStock : No
Nameplate Specifications
Output HP : 1 HpOutput KW : 0.75 kWFrequency : 60 HzVoltage : 115/208-230 VCurrent : 12.8/6.4 ASpeed : 1725 rpmService Factor : 1.15 Phase : 1 Efficiency : 75 %Duty : CONTINUOUS Insulation Class : F Design Code : N KVA Code : K Frame : 56C Enclosure : TEFC Overload Protector : NOT Ambient Temperature : 40 °CDrive End Bearing Size : 6205 Opp Drive End Bearing Size : 6203 UL : Recognized CSA : Y CE : N IP Code : 55
Technical Specifications
Electrical Type : CAP START IND RUN Starting Method : ACROSS THE LINE Poles : 4 Rotation : SELECTIVE CCW Mounting : ROUND Motor Orientation : HORIZONTAL Drive End Bearing : BALL Opp Drive End Bearing : BALL Frame Material : ROLLED STEEL Shaft Type : STANDARD 56 Overall Length : 12.12 inFrame Length : 6.25 inShaft Diameter : 0.63 inShaft Extension : 1.88 inAssembly/Box Mounting : F1 ONLY UPC : 691720013878 Weight : 32.00 LB
