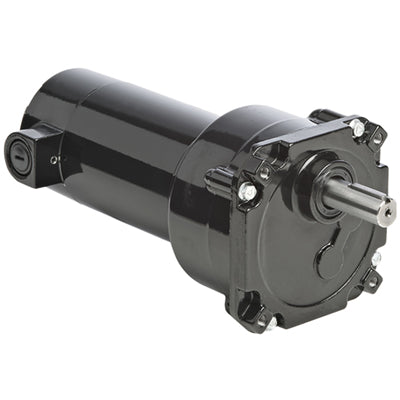

Bodine Electric 1157, 1/32 Hp, 288 Rpm, 6:1, 4 Lb-in., 24A4BEPM-Z2, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

Bodine Electric 1157, 1/32 Hp, 288 Rpm, 6:1, 4 Lb-in., 24A4BEPM-Z2, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

$541.71
$541.71
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1157, 1/32 Hp, 288 Rpm, 6:1, 4 Lb-in., 24A4BEPM-Z2, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

SPECIFICATIONS

Speed (rpm) 288
Rated Torque (Nm) 0.44
Rated Torque (lb-in) 4
Peak Torque (Nm) 1.9
Peak Torque (lb-in) 17
Power (Watts) 23
Power (HP) 1/32
Volts 180
Amps 0.18
Gear Ratio 6
Radial Load (N) 450
Radial Load (lbs) 100
Length XH (mm) 176
Length XH (inch) 6.92
Weight (kg) 2.3
Weight (lbs) 5
Connection Diagram 07410097
Product Type 24A4BEPM-Z2
HPDecimal 0.0312
