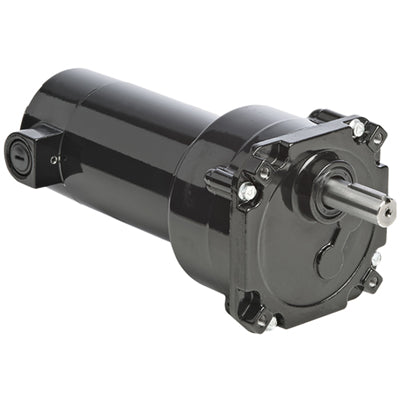

Bodine Electric 1160, 1/32 Hp, 58Rpm, 30:1, 18 Lb-in., 24A4BEPM-Z3, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

Bodine Electric 1160, 1/32 Hp, 58Rpm, 30:1, 18 Lb-in., 24A4BEPM-Z3, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

$581.05
$581.05
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1160, 1/32 Hp, 58Rpm, 30:1, 18 Lb-in., 24A4BEPM-Z3, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

SPECIFICATIONS

Speed (rpm) 58
Rated Torque (Nm) 2.0
Rated Torque (lb-in) 18
Peak Torque (Nm) 8.3
Peak Torque (lb-in) 75
Power (Watts) 23
Power (HP) 1/32
Volts 180
Amps 0.18
Gear Ratio 30
Radial Load (N) 555
Radial Load (lbs) 125
Length XH (mm) 199
Length XH (inch) 7.82
Weight (kg) 2.3
Weight (lbs) 5
Connection Diagram 07410097
Product Type 24A4BEPM-Z3
HPDecimal 0.0312
