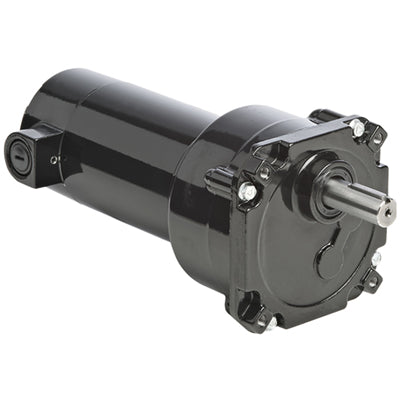

1161, 1/32 Hp, 29Rpm, 60:1, 36 Lb-in., 24A4BEPM-Z3, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

1161, 1/32 Hp, 29Rpm, 60:1, 36 Lb-in., 24A4BEPM-Z3, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

$581.05
$581.05
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1161, 1/32 Hp, 29Rpm, 60:1, 36 Lb-in., 24A4BEPM-Z3, METRIC 24A-Z SERIES PARALLEL SHAFT DC GEARMOTOR

SPECIFICATIONS

Speed (rpm) 29
Rated Torque (Nm) 4.1
Rated Torque (lb-in) 36
Peak Torque (Nm) 13
Peak Torque (lb-in) 115
Power (Watts) 23
Power (HP) 1/32
Volts 180
Amps 0.18
Gear Ratio 60
Radial Load (N) 555
Radial Load (lbs) 125
Length XH (mm) 199
Length XH (inch) 7.82
Weight (kg) 2.3
Weight (lbs) 5
Connection Diagram 07410097
Product Type 24A4BEPM-Z3
HPDecimal 0.0312
