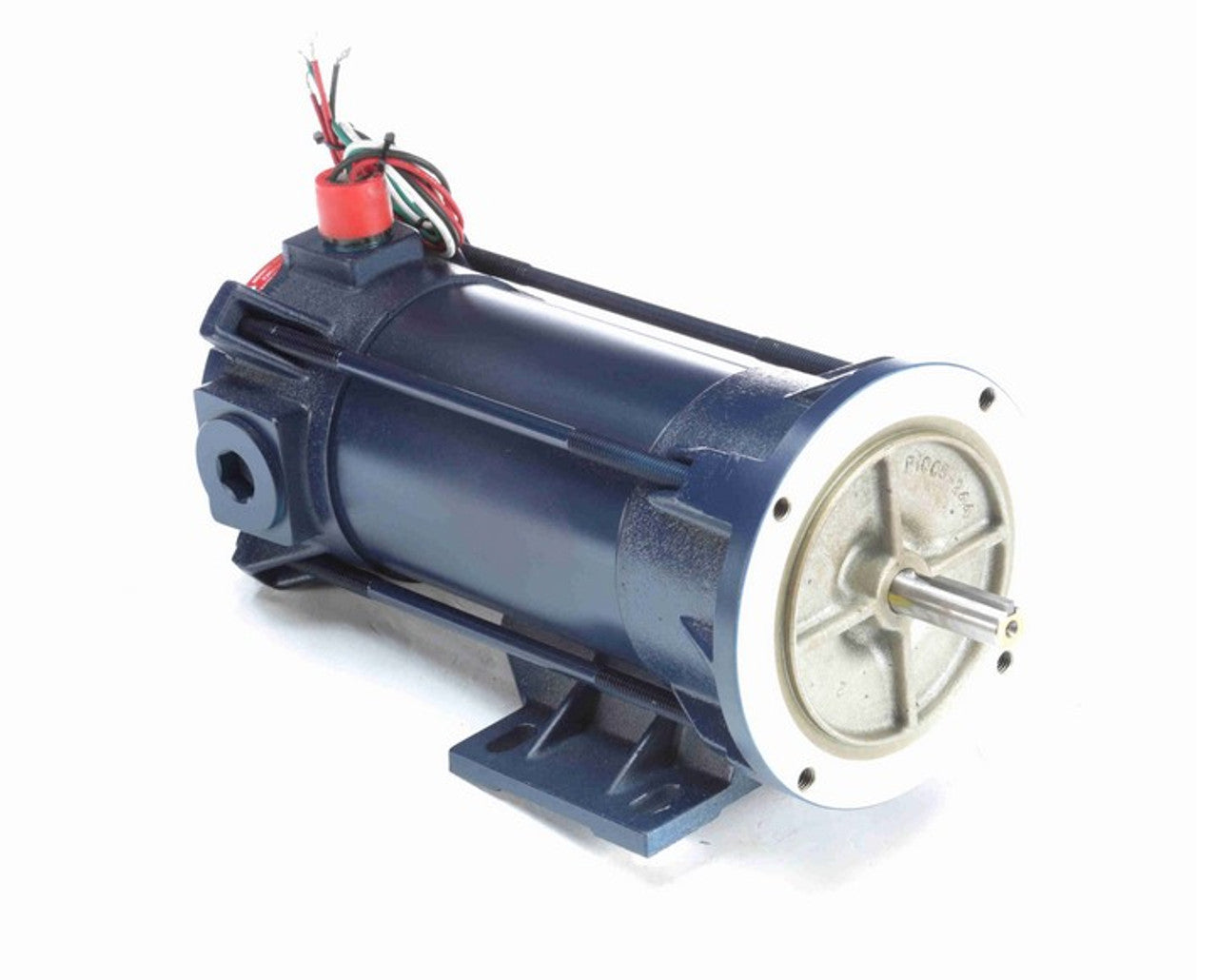

118017.00, 1/2 HP, 1750 RPM, 56C FR, TEFC, 180 VDC, C-Face w/Removable Base, SCR Rated DC Explosion-Proof Motor

118017.00, 1/2 HP, 1750 RPM, 56C FR, TEFC, 180 VDC, C-Face w/Removable Base, SCR Rated DC Explosion-Proof Motor

Engineering Data
RPM 1750 HP 1/2 Serv. Factor 1.0
KW Form Factor 1.38 Amps 2.5
KW2 Form Factor 2 FLA2
Volts 180 Frame 56C

--------------------------------------------------------------------------------

Max Amb 40 Duty CONT TYPE DE
Insul Class H Enclosure TENV Bearing OPE
Protection AUTO Protector Bearing PE
EFF 82.6% Torque 18.0 LB-IN
UL Yes CSA Yes CE No
Motor Wt. 32 LB Nameplate Lubrication
Carton Label Individual

--------------------------------------------------------------------------------

Assembly Mounting C-Face Rigid Rotation RECONN
Winding PS7 Ext. Diag. Ext. Diag2
GROUP 1 A Shaft Dia. 5/8 IN Packaging 307015.01
Sub Group A Paint
Test Card Outline 034444 Cust Part No

--------------------------------------------------------------------------------

RMS Amps
RMS Amps
AB Code Peak
Resistance Peak@DegC
Connection Const Torque Speed Range

--------------------------------------------------------------------------------

Explosion Proof Brake Motors
Temp Op Code T5 FORCE
Class I GROUP VDC
Class II GROUP ADC
Brake Coil OHMs @25 C
Performance
Torque UOM 270 LB-IN Inertia (WK²) 6.7 LB-IN^2
Torque 0 9 18
CURRENT (amps) .34 1.36 2.4
Efficiency (%) 0 75.8 82.6
PowerFactor
Load Curve Data
Output Pwr (HP) RPM AMP Torque (LB-IN) Eff Watts Watts Loss Volts
0 1802 .34 0 0 61 61 180
.25 1743 1.36 9 75.8 245 59 180
.48 1688 2.4 18 82.6 529 86 180
