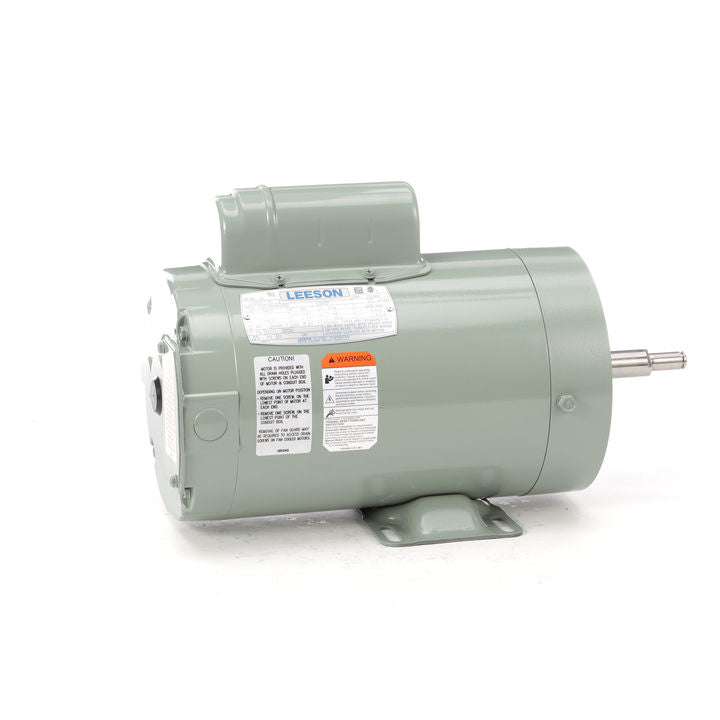

Leeson Electric 119227.00, 1 Hp, 3600 Rpm, 56CZ FR, TENV, 230 Vac, 1 PH, Rigid Base, Milk Transfer Pump Motor

119227.00, 1 Hp, 3600 Rpm, 56CZ FR, TENV, 230 Vac, 1 PH, Rigid Base, Milk Transfer Pump Motor.

Engineering Data

Volts 115 Volts 208-230 Volts
F.L. Amps 12 F.L. Amps 6.8-6 F.L. Amps
S. F Amps 13.2 S. F Amps 7.4-6.6 S. F Amps

RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE CN
KW .75
Frame 56CZ Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 66 Eff 75% PF 80
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type Inverter Type Speed Range NONE

Motor Wt. 30 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID Rotation SELECTIVE CCW
Assembly NONE Shaft Dia. SPECIAL IN Ext. Diag. 005278.05
Cust Part No Outline OL119227 Ext. Diag2
Packaging B Outline Dash No Winding C632217
Carton Label INDIVIDUAL GROUP : 3
Iris Paint GRAY - LIGHT (EPOXY) Test Card 01

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM OZ-FT Inertia (WK²) .084 LB-FT^2
Torque 24(Full Load) 56(Break Down) 48(Pull Up) 80(Locked Rotor)
CURRENT (amps) 6(Full Load) 0(Break Down) 0(Pull Up) 38(Locked Rotor)
Efficiency (%) 0(Full Load) 58.8(75% Load) 51.2(50% Load) 29.5(25% Load)
PowerFactor (Full Load) 81.6(75% Load) 76.3(50% Load) 72.6(25% Load)

Load Curve Data @60 Hz , NONE Volts , 1 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 2.68 0.246 3590 0.0 0.0 39.9 0.0 -
0.25 3.84 0.641 3547 6.0 29.5 72.6 0.0 -
0.5 4.2 0.737 3539 12.0 51.2 76.3 0.0 -
0.75 5.09 0.955 3517 18.0 58.8 81.6 0.0 -
1.0 6.11 1.199 3492 24.0 62.1 85.3 92.0 82.0
1.25 7.31 1.468 3462 30.0 62.8 87.3 0.0 -
1.5 8.64 1.758 3426 36.0 62.3 88.5 0.0 -
