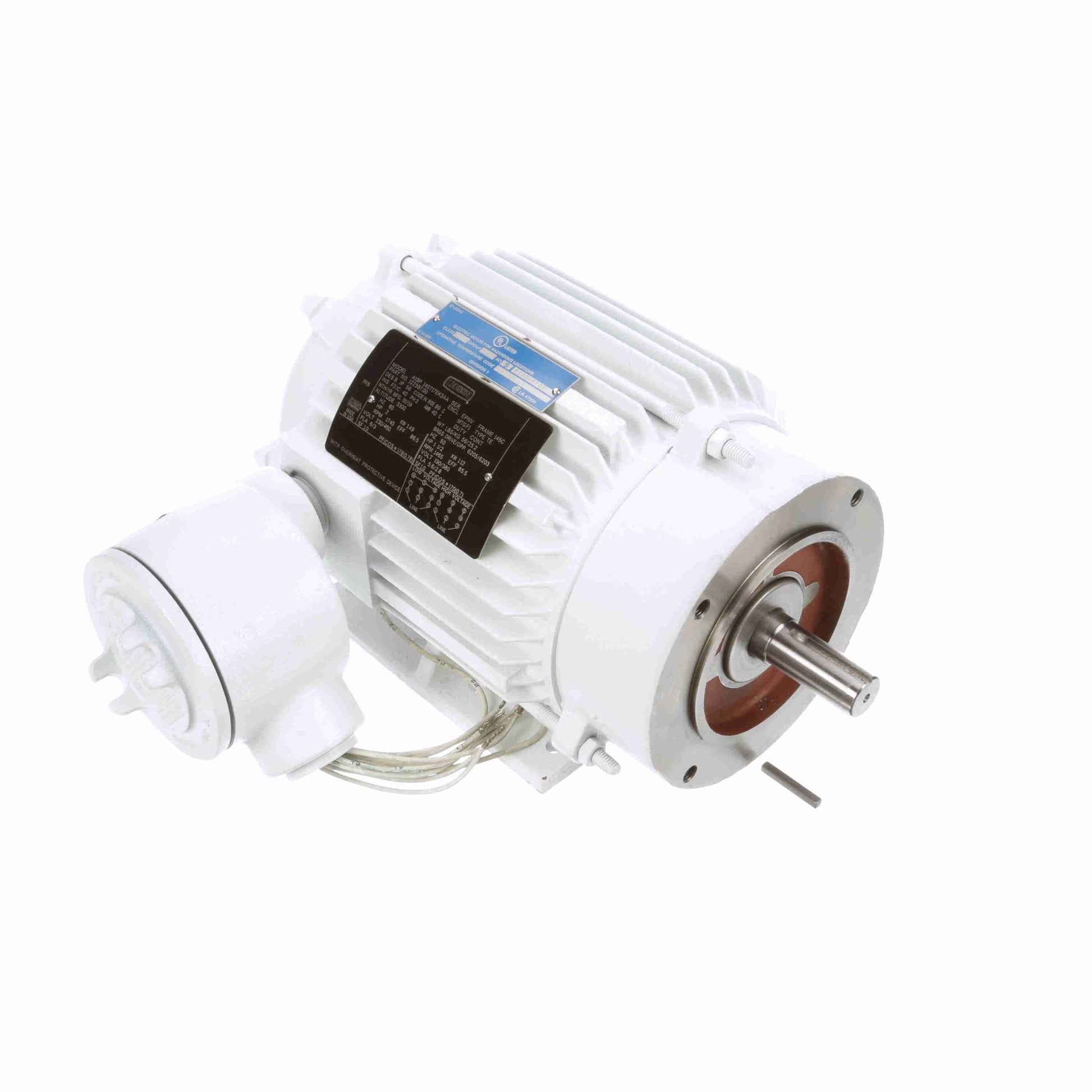

Leeson Electric 122397.00, 2 HP, 1800 RPM, 145C FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, All Stainless Steel, Washguard Motor.

122397.00, 2 HP, 1800 RPM, 145C FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, All Stainless Steel, Washguard Motor.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:6.0/3.0 A
Speed:1740 rpm
Service Factor:1
Phase:3
Efficiency:86.5 %
Power Factor:78
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:N
Frame:145C
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:Thermostats (N/C)Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:UL Listed And CSA Certified
CSA:Y
CE:NIP Code:56
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3B
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:6.51 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Cast Iron
Shaft Type:T
Overall Length:13.42 in
Frame Length:7.50 in
Shaft Diameter:0.875 in
Shaft Extension:2.12 in
Assembly/Box Mounting:F1 Only
