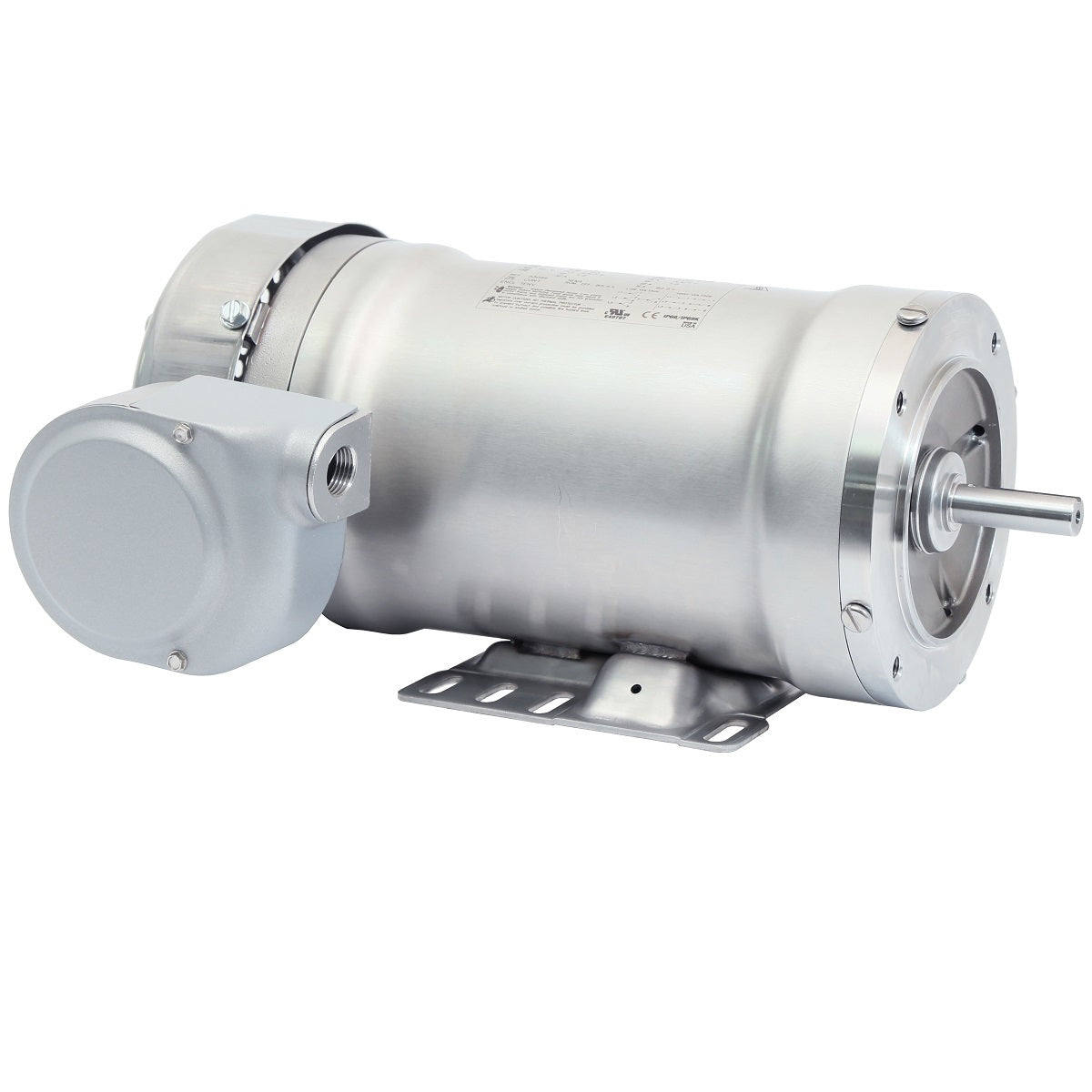

Weg Electric 1311087111, 1 1/2 Hp, 1800 Rpm, 145TC Frame, 208-230/460 Vac, TEFC, Foot-mounted, Washdown NEMA Premium Efficiency.

1311087111, 1 1/2 Hp, 1800 Rpm, 145TC Frame, 208-230/460 Vac, TEFC, Foot-mounted, Washdown NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frame 145TC
Frequency 60 Hz
Number of poles 4
Degree of Protection IP69K
Synchronous speed 1800 rpm
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure TEFC

Standard NEMA MG-1
Degree of Protection IP69K
Mounting F-1
Output rating 1.5 HP
Enclosure TEFC
Frequency 60 Hz
Flange C
Frame Material Stainless steel
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Motor Application WASHDOWN
Terminal box¹ Left position
Frame 145TC
Voltage 208-230/460V
Synchronous speed 1800 rpm
Number of Poles 04
