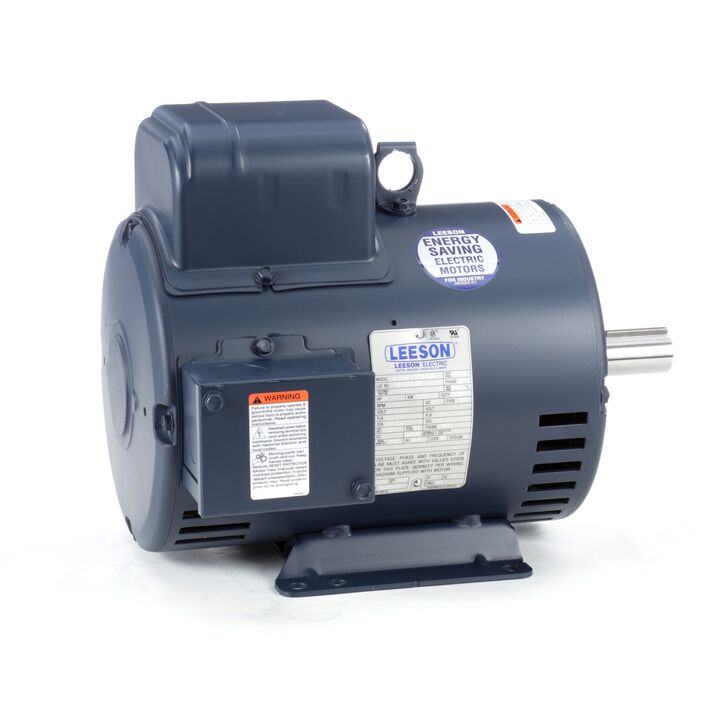

131622.00, 5 HP, 1800 RPM, 184T FR, DP, 208-230 Vac, 1 PH, Rigid Base, General Purpose

131622.00, 5 HP, 1800 RPM, 184T FR, DP, 208-230 Vac, 1 PH, Rigid Base, General Purpose Engineering Data Volts 208-230 Volts Volts F.L. Amps 23-21 F.L. Amps F.L. Amps S. F Amps 27-24 S. F Amps S. F Amps RPM 1800 Hertz 60 HP 5 Duty CONTINUOUS TYPE KD KW 3.73 Frame 184T Serv. Factor 1.15 Phase 1 Max Amb 40 Design L Code H Insul Class F Protection MANUAL Therm.Prot. LEH30KD Eff 100% 83 Eff 75% PF 94 UL Yes CSA Yes Bearing OPE 6205 CC Number CE No Bearing PE 6206 Load Type Inverter Type Speed Range NONE Motor Wt. 85 LB Enclosure DP Lubrication POLYREX EM Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW Assembly 180-006 Shaft Dia. 1 1/8 IN Ext. Diag. 005056.03 Cust Part No Outline 035372-1050 Ext. Diag2 Packaging B Winding K8450 Carton Label Leeson Gen Purpose GROUP: 2 Iris Paint STANDARD Test Card 01 Form Factor RMS Amps Const Torque Speed Range Torque Peak AB Code Peak@DegC Resistance Connection Rework Status Rework TYPE Hazardous Loc NONE Brake Motors Explosion Proof Temp Op Code FORCE Class GROUP: VDC Class GROUP: ADC Brake Coil OHMs @25 C Performance Torque UOM LB-FT Inertia (WK²) .46 LB-FT^2 Torque 17(Full Load) 37.7(Break Down) 29.1(Pull Up) 41.1(Locked Rotor) CURRENT (amps) 29.5(Full Load) 0(Break Down) 29.4(Pull Up) 148(Locked Rotor) Efficiency (%) 0(Full Load) 83.7(75% Load) 83(50% Load) 72.8(25% Load) PowerFactor 0(Full Load) 95.4(75% Load) 94.5(50% Load) 88.4(25% Load) Load Curve Data @60 Hz, 230 Volts, 5 Horsepower Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise 0.0 5.9 0.6 1798 0.0 0.0 44.2 0.0 - 0.25 8.68 1.512 1789 3.75 63.0 75.7 0.0 - 0.5 11.9 2.453 1778 7.5 77.2 89.6 0.0 - 0.75 16.04 3.45 1768 11.25 81.9 93.5 0.0 - 1.0 20.85 4.51 1756 15.0 83.0 94.0 72.0 60.0 1.25 26.0 5.69 1741 18.75 81.5 95.2 0.0 - 1.5 32.05 7.11 1722 22.5 77.4 96.5 0.0 - 1.15 23.5 5.2 1745 16.5 78.6 96.2 0.0 - SOURCE: CALCULATED GROUP: 2
