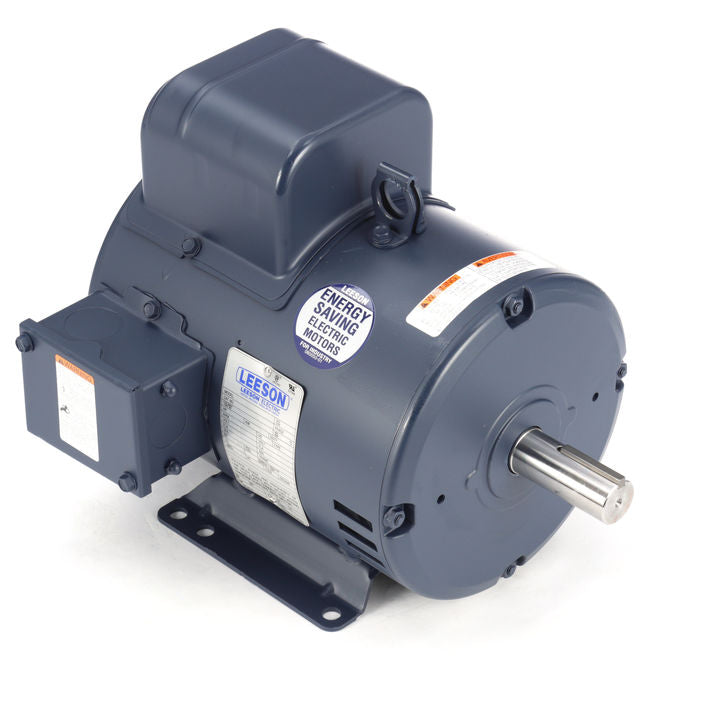

131851.00, 3 HP, 1800 RPM, 184T FR, DP, 208-230 Vac, 1 PH, Rigid Base, General Purpose

131851.00, 3 HP, 1800 RPM, 184T FR, DP, 208-230 Vac, 1 PH, Rigid Base, General Purpose

Engineering Data

Volts 208-230 Volts Volts
F.L. Amps 13.8-12.8-12.8 F.L. Amps F.L. Amps
S. F Amps 16-14.5-14.5 S. F Amps S. F Amps

RPM 1800 Hertz 60
HP 3 Duty CONTINUOUS TYPE KD
KW 2.24
Frame 184T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code G
Insul Class F Protection MANUAL Therm.Prot. BRJ42DB
Eff 100% 81.5 Eff 75% PF 92.5
UL NONE CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6206
Load Type Inverter Type Speed Range NONE

Motor Wt. 75 LB Enclosure DP Lubrication STANDARD
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW
Assembly Shaft Dia. 1 1/8 IN Ext. Diag. 005056.03
Cust Part No Outline 035847-950 Ext. Diag2
Packaging B Winding K84101
Carton Label Leeson Gen Purpose GROUP: 2
Iris Paint 305000.01 Test Card 01

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz, 230 Volts, 3 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 4.5 0.36 1800 0.0 0.0 34.8 0.0 -
0.25 5.5 0.89 1788 2.2 62.8 70.4 0.0 -
0.5 7.45 1.445 1778 4.42 77.3 84.3 0.0 -
0.75 9.9 2.045 1770 6.7 82.4 89.8 0.0 -
1.0 12.8 2.73 1760 8.94 81.5 92.5 38.0 28.0
1.15 14.5 3.09 1752 10.34 83.3 92.7 46.0 31.0
1.25 15.8 3.37 1745 11.24 82.7 92.7 0.0 -
1.5 19.3 4.12 1730 13.59 81.1 92.8 0.0 -
SOURCE: CALCULATED GROUP: 2
