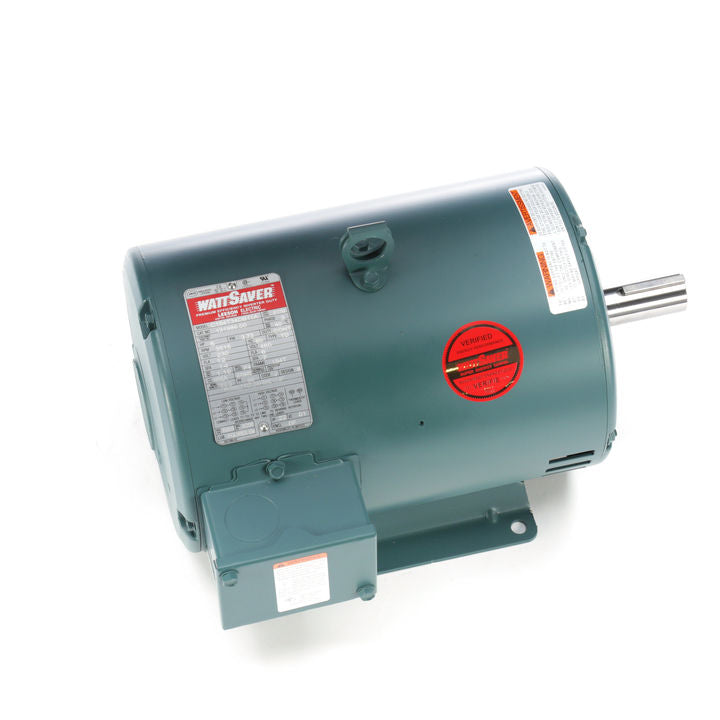

Leeson Electric 131986.00, 5 HP, 3600 RPM, 184T FR, DP, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose

131986.00, 5 HP, 3600 RPM, 184T FR, DP, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose.

Engineering Data

Volts 208-230 Volts 460 Volts
F.L. Amps 13-12 F.L. Amps 6 F.L. Amps
S. F Amps 15-14 S. F Amps 7 S. F Amps

RPM 3600 Hertz 60
HP 5 Duty CONTINUOUS TYPE TD
KW 3.73
Frame 184T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection AUTOMATIC Therm.Prot. 9700K46
Eff 100% 86.5 Eff 75% PF 90
UL Yes CSA Yes Bearing OPE 6205
CC Number 005A CE Yes Bearing PE 6206
Load Type Inverter Type Speed Range NONE

Motor Wt. 86 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081298 Mounting RIGID Rotation REV
Assembly NONE Shaft Dia. 1 1/8 IN Ext. Diag. 005010.20
Cust Part No Outline 035464-1100 Ext. Diag2
Packaging B Winding T8291
Carton Label Leeson Wattsaver GROUP: 3
Iris Paint GREEN - LEESON WATTSAVER Test Card 01

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz, Volts, 5 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
