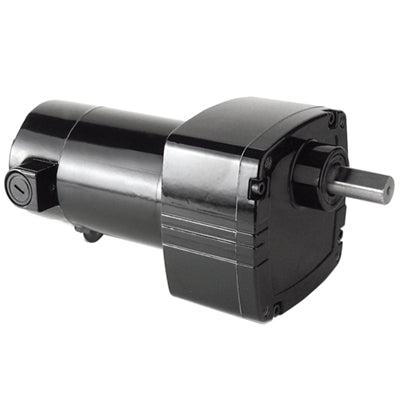

Bodine Electric, 1397, 1/49 Hp, 9.6 Rpm, 180:1 65 Lbs., Metric 24A2BEPM-D4, Parallel Shaft DC Gearmotor

Bodine Electric, 1397, 1/49 Hp, 9.6 Rpm, 180:1 65 Lbs., Metric 24A2BEPM-D4, Parallel Shaft DC Gearmotor

$497.82
$497.82
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1397, 1/49 Hp, 9.6 Rpm, 180:1 65 Lbs., Metric 24A2BEPM-D4, Parallel Shaft DC Gearmotor

SPECIFICATIONS

Speed (rpm) 9.6
Rated Torque (Nm) 4.5
Rated Torque (lb-in) 40
Peak Torque (Nm) 6.2
Peak Torque (lb-in) 55
Power (Watts) 15
Power (HP) 1/49
Volts 180
Amps 0.13
Gear Ratio 180
Radial Load (N) 285
Radial Load (lbs) 65
Length XH (mm) 152
Length XH (inch) 5.97
Weight (kg) 1.9
Weight (lbs) 4
Connection Diagram 07410097
Product Type 24A2BEPM-D4
HPDecimal 0.0204
