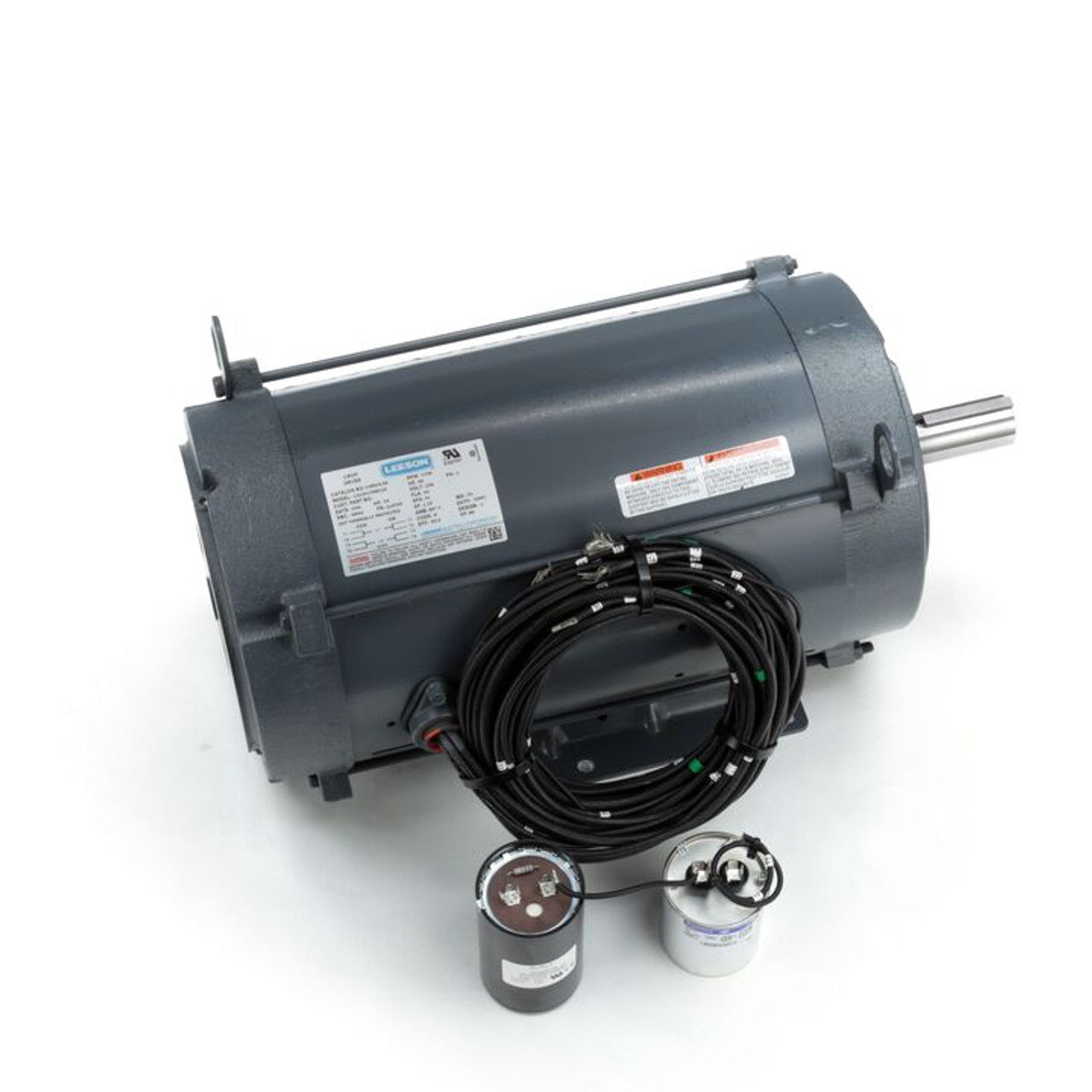

140816.00, 10 Hp, 1800 Rpm, 215TVC, 230 Vac, 1 PH, C-Face w/Base, Tobacco Barn Motor

(140816.00) 10HP..1730RPM.215.DPAO./V.1PH.60HZ..NOT.80C..RIGID..C215K17DB13A

Engineering Data
Volts 230 Volts Volts
F.L. Amps 44 F.L. Amps F.L. Amps
S. F Amps 51 S. F Amps S. F Amps

--------------------------------------------------------------------------------

RPM 1800 Hertz 60
HP 10 Duty CONTINUOUS AOM TYPE KD
KW 7.5
Frame 215TVZ Serv. Factor 1.15 Phase 1
Max Amb 80 Design L Code G
Insul Class H Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75% PF 89
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number EXEMPT CE No Bearing PE 6307
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. 150 LB Enclosure DPAO Lubrication DC 44M
Nameplate Mounting RIGID Rotation SELECTIVE CCW
Assembly Shaft Dia. Ext. Diag. A-EE9048MF-LE
Cust Part No Outline A-SS89636LE-1240 Ext. Diag2
Packaging F Outline Dash No Winding BK104121
Carton Label GROUP: 2
Iris Paint GRAY - LEESON (EPOXY) Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60 Hz, 230 Volts, 10 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 14.0 0.67 1800 0.0 0.0 17.5 0.0 -
0.25 17.1 2.48 1784 7.3 74.8 63.1 0.0 -
0.5 24.4 4.49 1770 14.8 83.2 80.0 0.0 -
0.75 33.3 6.64 1754 22.3 84.1 86.7 0.0 -
1.0 44.0 9.0 1730 30.1 82.5 89.0 0.0 -
1.15 51.0 10.8 1710 35.0 81.0 90.5 0.0 -
1.25 56.1 11.6 1705 38.0 80.5 89.9 0.0 -
1.5 71.2 14.7 1695 46.2 76.1 89.8 0.0 -
SOURCE CALCULATED GROUP 2
