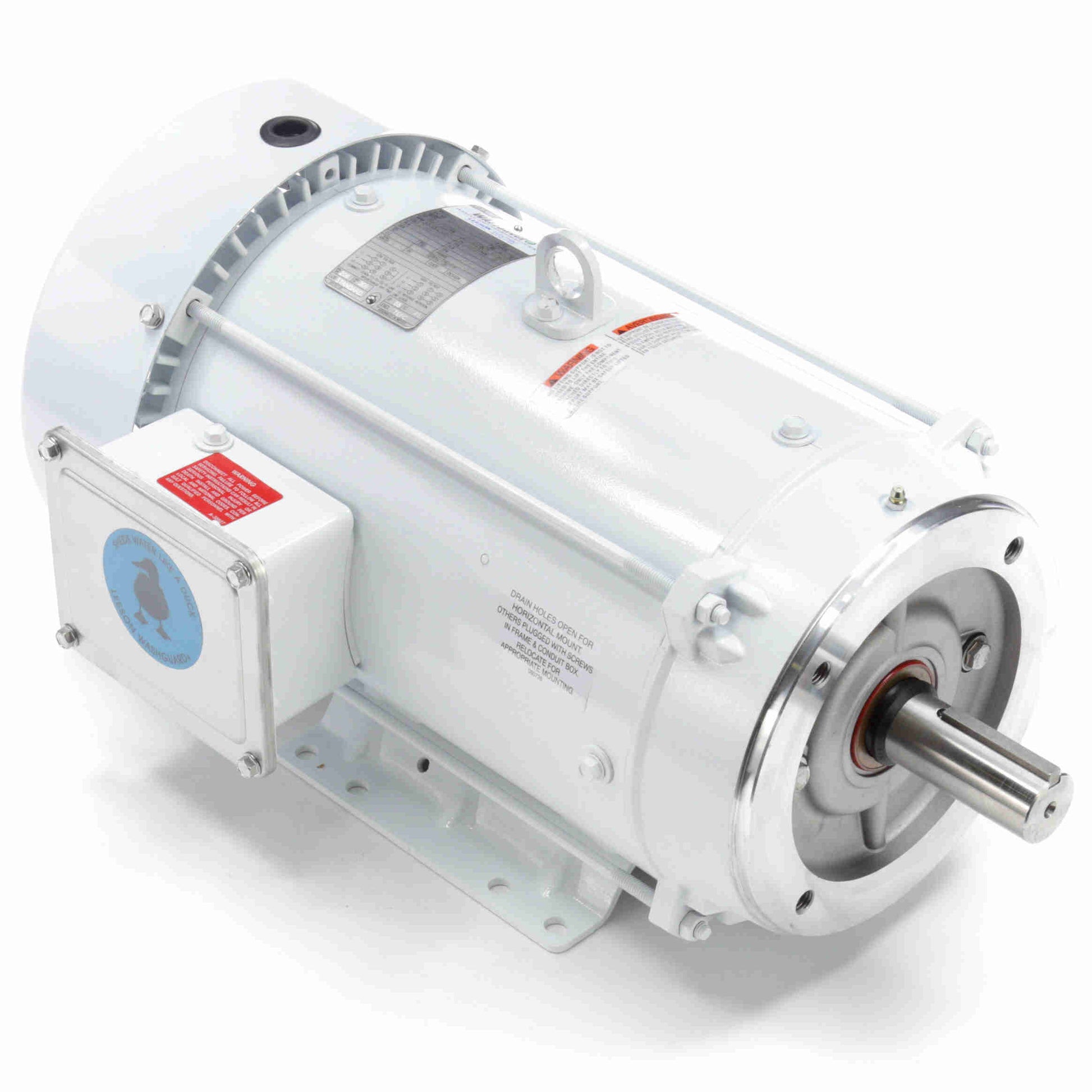

140823.00, 10 HP, 3600 RPM, 215TC FR, TENV & TEFC, 208-230/460 Vac, 3 PH, C Face w/Base, Washguard

140823.00, 10 HP, 3600 RPM, 215TC FR, TENV & TEFC, 208-230/460 Vac, 3 PH, C Face w/Base, Washguard.

Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 23.6 F.L. Amps 11.8 F.L. Amps 22/11
S. F Amps 26 S. F Amps 13 S. F Amps 24.8/12.4

RPM 3600 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.5
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75% PF 87
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number CC005A CE Yes Bearing PE 309
Load Type Inverter Type Speed Range NONE

Motor Wt. 164 LB Enclosure TEFC Lubrication STANDARD
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7308-LE
Cust Part No Outline SS88708LE-1240 Ext. Diag2
Packaging F Winding K215295
Carton Label Leeson Washguard GROUP: 6
Iris Paint WHITE - LEESON (EPOXY) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60/50 Hz, 460 Volts, 10 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 3.5 0.3 3600 0.0 0.0 8.5 0.0 -
0.25 4.5 2.0 3585 3.5 88.0 58.5 0.0 -
0.5 6.5 4.0 3570 7.5 91.7 78.5 0.0 -
0.75 9.0 6.0 3555 11.0 92.4 86.0 0.0 -
1.0 11.8 8.0 3535 14.9 91.7 87.0 50.0 -
1.15 13.0 9.5 3530 17.0 91.7 89.0 75.0 -
1.25 14.0 10.0 3525 18.5 91.7 90.0 95.0
