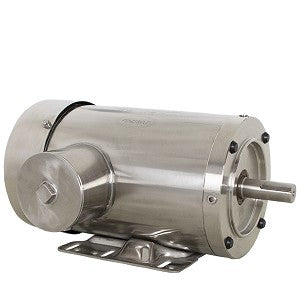

140828.00, 10 HP, 1800 RPM, 215TC FR, TEFC, 208-230/460 Vac, 3 PH, C-Face with Base, All Stainless Washguard Motor

140828.00, 10 HP, 1800 RPM, 215TC FR, TENV/TEFC, 208-230/460 Vac, 3 PH, C-Face with Base, All Stainless Washguard Motor

Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 28.8-26.8 F.L. Amps 13.4 F.L. Amps 31.2/15.6
S. F Amps 35.2-32.4 S. F Amps 16.2 S. F Amps 36.6/18.8

RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.50
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75% PF 77
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6207
CC Number NONE CE Yes Bearing PE 6209
Load Type Inverter Type Speed Range NONE

Motor Wt. 173 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081119 Mounting RIGID Rotation REV
Assembly 210-024-01 Shaft Dia. 1 3/8 IN Ext. Diag. 005010.01
Cust Part No Outline 037616 Ext. Diag2
Packaging B Winding T9497
Carton Label Leeson Washguard GROUP: 3
Iris Paint NO PAINT Test Card 02

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM LB-FT Inertia (WK²) 1.16 LB-FT^2
Torque 29.75(Full Load) 90(Break Down) 40(Pull Up) 55.2(Locked Rotor)
CURRENT (amps) 13.4(Full Load) 48.5(Break Down) 77(Pull Up) 79(Locked Rotor)
Efficiency (%) 0(Full Load) 91.7(75% Load) 90.6(50% Load) 85.8(25% Load)
PowerFactor 0(Full Load) 71.7(75% Load) 60.1(50% Load) 39.6(25% Load)

Load Curve Data @60/50 Hz, 460 Volts, 10 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 6.2 0.3 1799 0.0 0.0 6.1 0.0 -
0.25 6.9 2.175 1793 7.33 85.8 39.6 0.0 -
0.5 8.6 4.115 1784 14.71 90.6 60.1 0.0 -
0.75 10.7 6.11 1774 22.23 91.7 71.7 0.0 -
1.0 13.4 8.155 1765 29.75 91.7 77.0 55.0 -
1.15 15.0 9.4 1758 34.2 91.0 78.8 70.0 -
1.25 16.2 10.28 1754 37.43 90.7 79.2 85.0 -
1.5 19.5 12.48 1743 45.17 89.6 80.3 0.0
