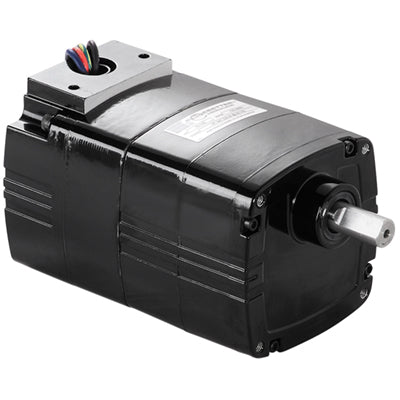

Bodine Electric, 1573 1/41 Hp, 47 Rpm, 30:1 65 Lbs., Metric 30R2BECI-D3 Parallel Shaft AC Gearmotor

Bodine Electric, 1573 1/41 Hp, 47 Rpm, 30:1 65 Lbs., Metric 30R2BECI-D3 Parallel Shaft AC Gearmotor

$437.30
$437.30
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1573 1/41 Hp, 47 Rpm, 30:1 65 Lbs., Metric 30R2BECI-D3 Parallel Shaft AC Gearmotor

SPECIFICATIONS

Speed (rpm) 47
Rated Torque (Nm) 2.7
Rated Torque (lb-in) 24
Power (Watts) 18
Power (HP) 1/41
Volts 230
Hz 50
Phases 1
Amps 0.21
Gear Ratio 30
Radial Load (N) 285
Radial Load (lbs) 65
Length XH (mm) 139.2
Length XH (inch) 5.5
Weight (kg) 2.8
Weight (lbs) 6.3
Connection Diagram 07410021
Capacitor Part Number 49400091
Product Type 30R2BECI-D3
HPDecimal 0.0243
