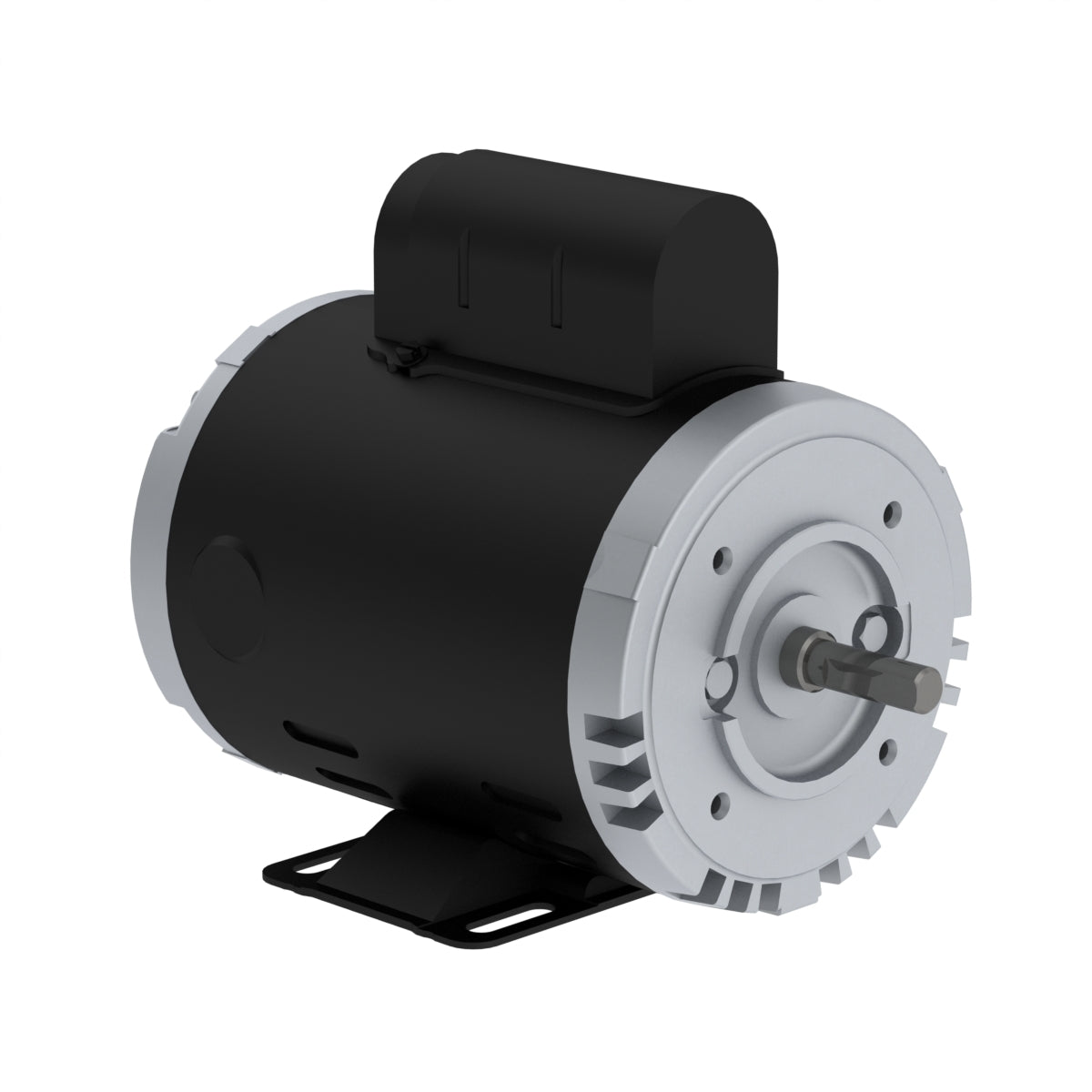

Weg Electric .1636OS1B48CH-S, 4/25 Hp, 48 Frame, 3600 RPM, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

.1636OS1B48CH-S, 4/25 Hp, 48 Frame, 3600 RPM, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.16 HP
Mounting Foot-mounted
Flange C - superior size
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 48
Output 0.16 HP (0.12 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 2.82/1.56-1.41 A
L. R. Amperes 18.3/10.1-9.16 A
LRC 6.5x(Code P)
No load current 2.40/1.03-1.20 A
Rated torque 0.240 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0126 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
