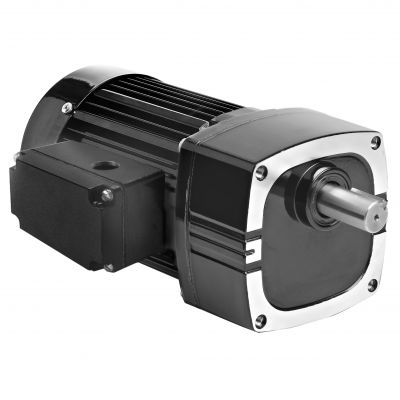

Bodine Electric, 1653 1/7.5 Hp, 47 Rpm, 30:1 300 Lbs., Metric 42R5BFSI-E3 Parallel Shaft AC Gearmotor

Bodine Electric, 1653 1/7.5 Hp, 47 Rpm, 30:1 300 Lbs., Metric 42R5BFSI-E3 Parallel Shaft AC Gearmotor

$812.55
$812.55
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 1653 1/7.5 Hp, 47 Rpm, 30:1 300 Lbs., Metric 42R5BFSI-E3 Parallel Shaft AC Gearmotor

SPECIFICATIONS

Speed (rpm) 47
Rated Torque (Nm) 16.7
Rated Torque (lb-in) 148
Power (Watts) 100
Power (HP) 1/7.5
Volts 230
Hz 50
Phases 1
Amps 1.4
Gear Ratio 30
Radial Load (N) 1300
Radial Load (lbs) 300
Length XH (mm) 231
Length XH (inch) 9.08
Weight (kg) 6.8
Weight (lbs) 15.3
Connection Diagram 07410132
Capacitor Part Number N/A
Product Type 42R5BFSI-E3
HPDecimal 0.1333
