Bodine Electric, 1679 1/7.5 Hp, 280 Rpm, 5:1 300 Lbs., Metric 42R5BFCI-E1 Parallel Shaft AC Gearmotor

Bodine Electric, 1679 1/7.5 Hp, 280 Rpm, 5:1 300 Lbs., Metric 42R5BFCI-E1 Parallel Shaft AC Gearmotor

$726.30
$726.30
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

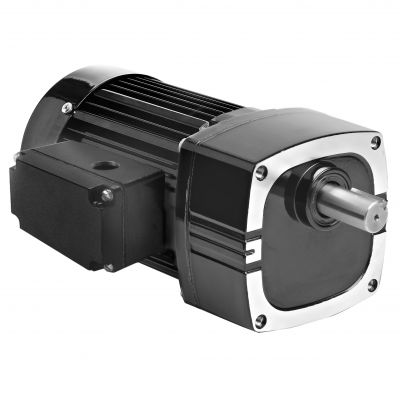

Bodine Electric 1679 1/7.5 Hp, 280 Rpm, 5:1 300 Lbs., Metric 42R5BFCI-E1 Parallel Shaft AC Gearmotor

SPECIFICATIONS

Speed (rpm) 280
Rated Torque (Nm) 2.9
Rated Torque (lb-in) 25
Power (Watts) 100
Power (HP) 1/7.5
Volts 230
Hz 50
Phases 1
Amps .78
Gear Ratio 5
Radial Load (N) 1300
Radial Load (lbs) 300
Length XH (mm) 231
Length XH (inch) 9.08
Weight (kg) 6.8
Weight (lbs) 15.3
Connection Diagram 07410021
Capacitor Part Number 49401154
Product Type 42R5BFCI-E1
HP Decimal 0.1333
