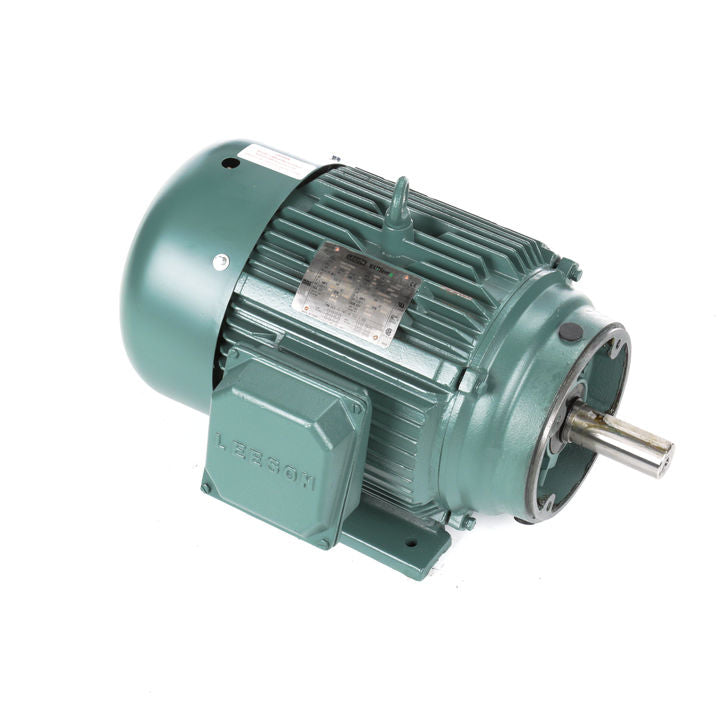

Leeson Electric 170138.60, 7 1/2 HP, 1200 RPM, 254TC FR, TEFC, 208-230/460 Vac, 3PH, C Face w/Base, General Purpose

170138.60, 7 1/2 HP, 1200 RPM, 254TC FR, TEFC, 208-230/460 Vac, 3PH, C Face w/Base, General Purpose.

Engineering Data

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 23-22.2 F.L. Amps 11.1 F.L. Amps 19/9.5
S. F Amps 24.5-23.6 S. F Amps 11.8 S. F Amps 21/10.5

RPM 1200 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.6
Frame 254TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75% PF 70
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6308
CC Number CC005A CE Yes Bearing PE 6309
Load Type Inverter Type Speed Range NONE

Motor Wt. 249 LB Enclosure TEFC Lubrication STANDARD
Nameplate 93458-E-LN-FHKLQ-A-B Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. 004172.01
Cust Part No Outline B-SS622044LE Ext. Diag2
Packaging B Winding T12906018
Carton Label GROUP: 3
Iris Paint VERIFY Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60/50 Hz, Volts, 7 1/2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
