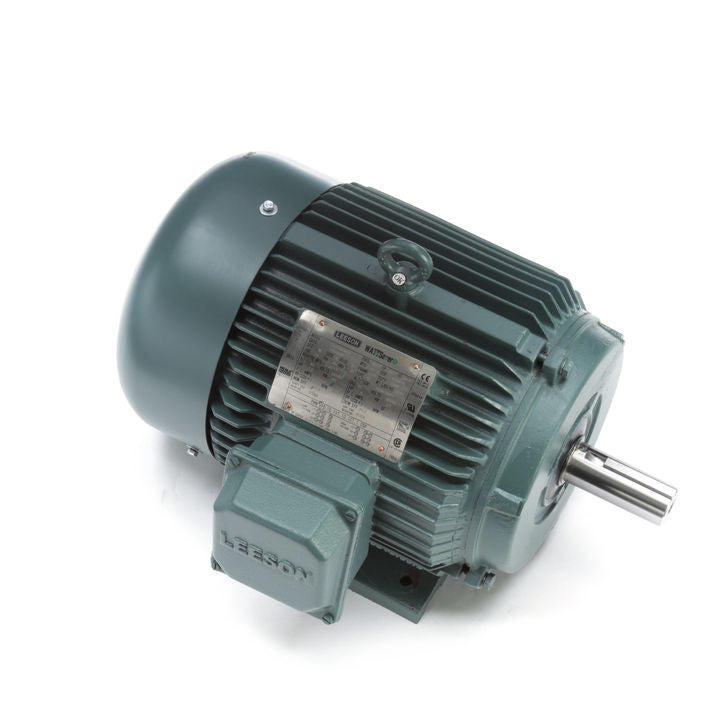

Leeson Electric 170158.60, 7 1/2 HP, 3600 RPM, 213T FR, TEFC, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose

170158.60, 7 1/2 HP, 3600 RPM, 213T FR, TEFC, 208-230/460 Vac, 3 PH, Rigid Base, General Purpose.

Engineering Data

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 20-15 F.L. Amps 7.5 F.L. Amps 14.4/7.2
S. F Amps 23-16.4 S. F Amps 10 S. F Amps 16.4/8.2

RPM 3600 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.6
Frame 213T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91 Eff 75% PF 85.5
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6308
Load Type Inverter Type Speed Range NONE

Motor Wt. 156 LB Enclosure TEFC Lubrication STANDARD
Nameplate 081024 Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. 005010.01
Cust Part No Outline 16953560 Ext. Diag2
Packaging 307996.01 Winding T10702021
Carton Label INDIVIDUAL GROUP: 3
Iris Paint VERIFY Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60/50 Hz, 460 Volts, 7 1/2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 3.0 0.218 3600 0.0 0.0 9.1 0.0 -
0.25 3.82 1.693 3586 2.78 82.5 55.5 0.0 -
0.5 5.36 3.2 3571 5.6 88.5 75.0 0.0 -
0.75 7.15 4.717 3555 8.44 91.0 83.0 0.0 -
1.0 9.15 6.24 3539 11.24 91.0 85.5 30.0 -
1.15 10.0 7.1 3535 12.3 90.2 86.0 40.0 -
1.25 11.25 7.813 3522 14.05 90.2 87.0 0.0 -
1.5 13.4 9.377 3505 16.85 89.5 87.5 0.0
