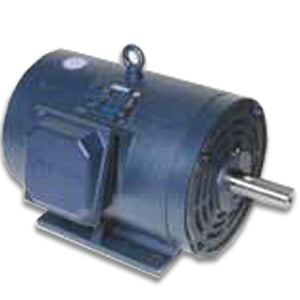

170542.60, 30 HP, 1800 RPM, 286T FR, ODP, 208-230/460 Vac, 3 PH, Rigid Base, Grain Dryer/Centrifugal Fan

170542.60, 30 HP, 1800 RPM, 286T FR, ODP, 208-230/460 Vac, 3 PH, Rigid Base, Grain Dryer/Centrifugal Fan.

Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 78-71 F.L. Amps 35.5 F.L. Amps 86/43
S. F Amps 90-80 S. F Amps 40 S. F Amps 97.5/48.5

RPM 1800 Hertz 60/50
HP 30 Duty CONTINUOUS TYPE TD
KW 22.4
Frame 286T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 94.1 Eff 75% PF 83
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6211
CC Number CC005A CE Yes Bearing PE 6312
Load Type Inverter Type Speed Range NONE

Motor Wt. 471 LB Enclosure DP Lubrication VERIFY
Nameplate 93458-E-LN-FHKLQ-A-X-B Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. 004172.01
Cust Part No Outline SS622280 Ext. Diag2
Packaging N Outline Dash No Winding T14504018
Carton Label GROUP : 3
Iris Paint STANDARD Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60/50 Hz , 380 Volts , 30 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 12.5 0.5 1800 0.0 0.0 5.0 0.0 -
0.25 15.5 6.2 1795 22.0 91.0 50.0 0.0 -
0.5 21.0 0.0 1790 44.3 94.1 71.0 0.0 -
0.75 28.8 0.0 1785 66.3 94.5 80.0 0.0 -
1.0 35.5 23.9 1780 88.5 94.1 83.5 45.0 -
1.15 40.8 27.5 1778 102.0 93.6 84.5 60.0 -
1.25 43.5 0.0 1775 0.0 93.6 85.0 75.0 -
