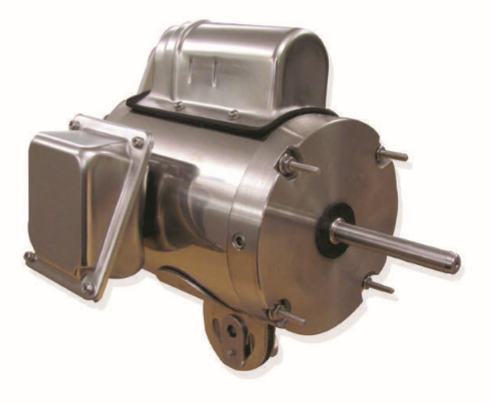

191543.00, 1/4 Hp, 1725 Rpm, 48Y FR, 115/230 Vac, 1 PH, TEFC, C-Face with Base, Stainless Steel Pedestal Fan Motors

191543.00, 1/4 Hp, 1725 Rpm, 48Y FR, 115/230 Vac, 1 PH, TEFC, C-Face with Base, Stainless Steel Pedestal Fan Motors.

Engineering Data
Volts 575 Volts Volts
F.L. Amps 1.3 F.L. Amps F.L. Amps
S. F Amps 1.5 S. F Amps S. F Amps

RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75
Frame D80 Serv. Factor 1.15 Phase 3
Max Amb 40 Design NO DESIGN CODE Code G
Insul Class F Protection NOT Therm.Prot. NONE
Eff 100% 78 Eff 75% PF 74
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6204
CC Number CE Yes Bearing PE 6204
Load Type Inverter Type Speed Range 1.5 X BASE SPEED

Motor Wt. 23 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate Mounting B3 Rotation REV
Assembly NA Shaft Dia. 19 MM Ext. Diag. 00546802
Cust Part No Outline OL19212530 Ext. Diag2
Packaging INDIVIDUAL Outline Dash No Winding QT8045
Carton Label GROUP : 4
Iris Paint BLUE GRAY Test Card
