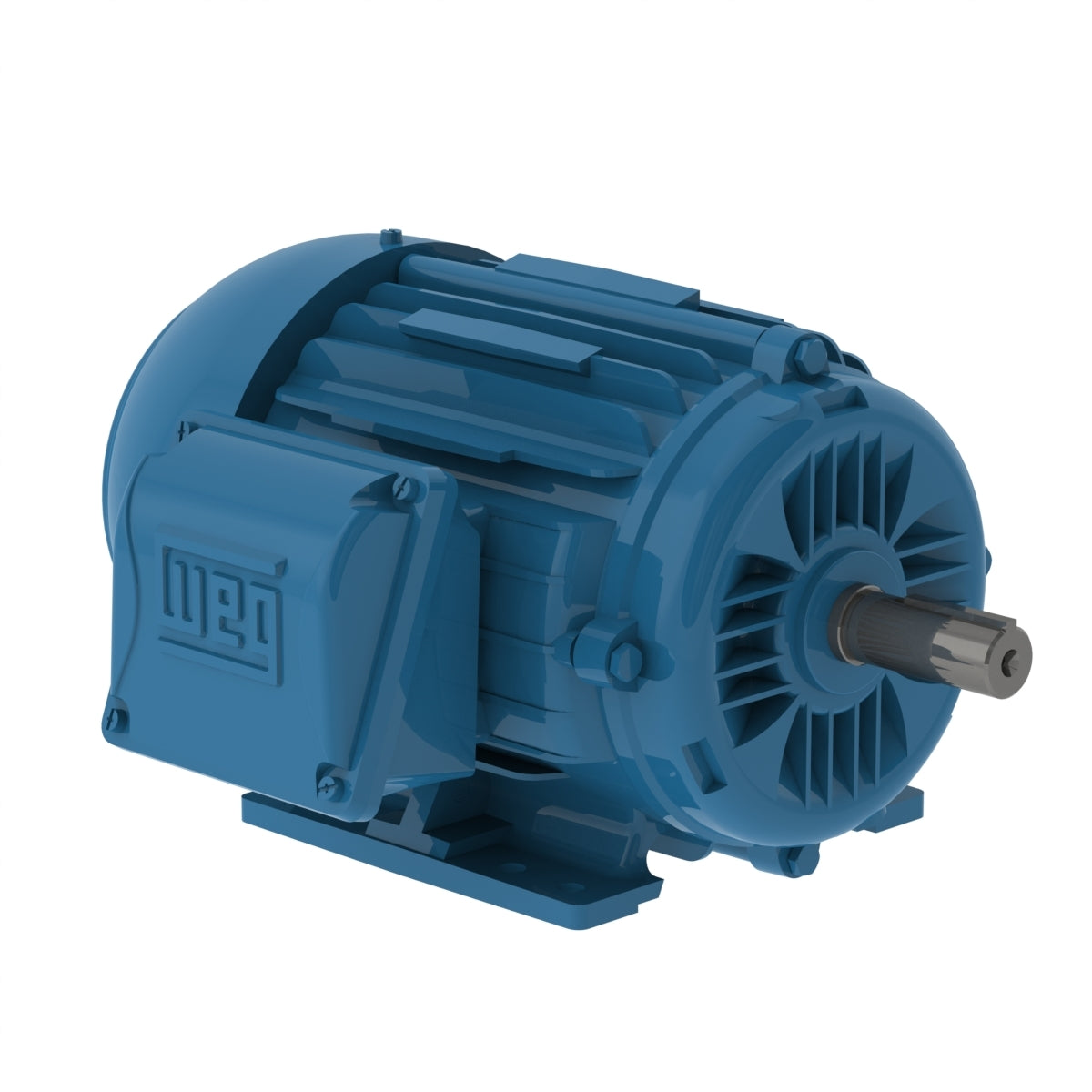

(199003.00) 3HP..3600 RPM.182T.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID

199003.00, 3HP..3600 RPM.182T.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.

Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 7.6 F.L. Amps 3.8 F.L. Amps 6.4/3.2
S. F Amps 8.4 S. F Amps 4.2 S. F Amps 8.4/4.2

RPM 3600 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24
Frame 182T Serv. Factor 1.15 Phase 3
Max Amb 40 Design A Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75% PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number CC005A CE No Bearing PE 6206
Load Type Inverter Type Speed Range NONE

Motor Wt. 85 LB Enclosure TEFC Lubrication STANDARD
Nameplate 93405-L-N-ABDEF-B-A Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7308-LE
Cust Part No Outline B-SS620290 Ext. Diag2
Packaging F Winding CHT18220001
Carton Label GROUP: 1
Iris Paint GRAY (ENAMEL) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60/50 Hz, 460 Volts, 3 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.6 0.25 3600 0.0 0.0 8.0 0.0 -
0.25 1.9 0.75 3585 1.1 82.5 46.5 0.0 -
0.5 2.4 1.3 3570 2.2 85.5 68.5 0.0 -
0.75 3.0 2.0 3555 3.3 86.5 79.0 0.0 -
1.0 3.8 2.6 3535 4.5 86.5 85.0 25.0 -
1.15 4.2 3.0 3525 5.2 86.5 87.0 35.0 -
1.25 4.5 3.2 3520 5.6 86.5 88.0 45.0 -
SOURCE: CALCULATED GROUP: 1
