Industrial Motors

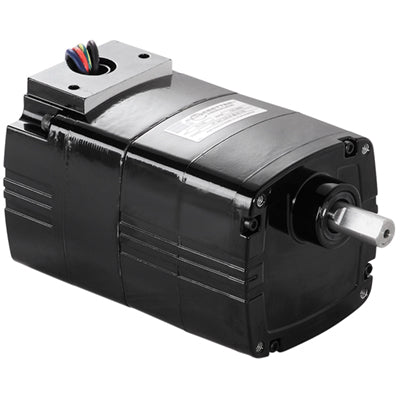

Bodine Electric 2218, 1/17 Hp, 283Rpm, 6:1, 7.4Lb-in., 30R4BEPP-D4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2218, 1/17 Hp, 283Rpm, 6:1, 7.4Lb-in., 30R4BEPP-D4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$526.58
$526.58
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2218, 1/17 Hp, 283Rpm, 6:1, 7.4Lb-in., 30R4BEPP-D4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

SPECIFICATIONS

Speed (rpm) 283
Fixed Speed Torque 7.4 Lb-in
Motor Output Power (hp) 1/17
Voltage (AC) 230
Current (amps) 0.48
Rated Frequency (Hz) 60
Gear Ratio 6:1
Variable Speed (rpm) 22-359
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 7.4
SOA Torque At 60Hz 7.4
SOA Torque At Max Hz 7.4
Length XH (inches) 5.9
Weight (lbs) 6.3
Connection Diagram 07410881
Motor Type 30R4BEPP-D3
HPDecimal 0.05
View full details

Attachments
