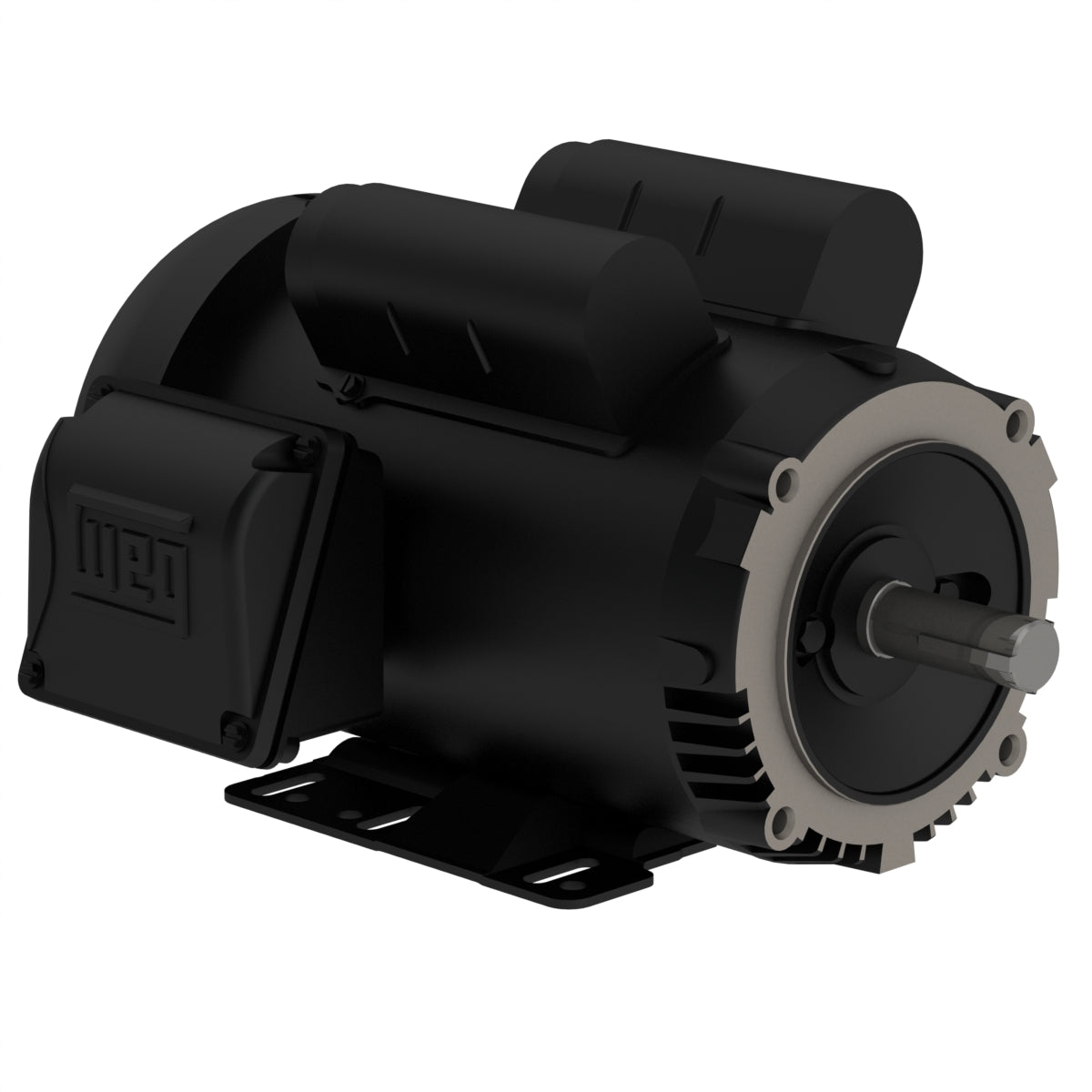

Weg Electric 00336ES1E145TC-S, 3 Hp, 143/5TC Frame, 3600 RPM, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

00336ES1E145TC-S, 3 Hp, 143/5TC Frame, 3600 RPM, 208-230/460 Vac, TEFC, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 143/5TC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 208-230/460 V
Rated current 14.0-12.7/6.35 A
L. R. Amperes 112-102/50.8 A
LRC 8.0x(Code J)
No load current 3.45-4.00/2.00 A
Rated torque 4.51 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0944 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
