Industrial Motors

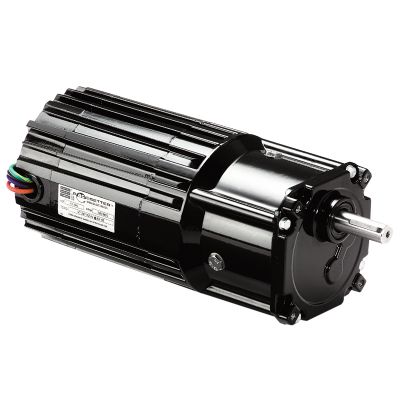

Bodine Electric 2220, 1/6 Hp, 9 Rpm, 180:1, 120 Lb-in., 34R6BEPP-Z4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2220, 1/6 Hp, 9 Rpm, 180:1, 120 Lb-in., 34R6BEPP-Z4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$617.36
$617.36
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2220, 1/6 Hp, 9 Rpm, 180:1, 120 Lb-in., 34R6BEPP-Z4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 9
Fixed Speed Torque 120 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 0.73
Rated Frequency (Hz) 60
Gear Ratio 180
Variable Speed (rpm) 0.9-13
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 120
SOA Torque At 60Hz 120
SOA Torque At Max Hz 120
Length XH (inches) 8.4
Weight (lbs) 10.5
Connection Diagram 07410881
Motor Type 34R6BEPP-Z4
HPDecimal 0.1667
