Industrial Motors

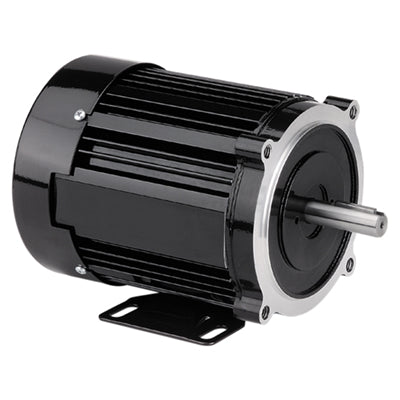

Bodine Electric, 2244, 1/3 Hp, 1800 Rpm, 262 Oz-in., 48R5BFYP, 230/460 Vac., Pacesetter Inverter Duty, Synchronous Motor

Bodine Electric, 2244, 1/3 Hp, 1800 Rpm, 262 Oz-in., 48R5BFYP, 230/460 Vac., Pacesetter Inverter Duty, Synchronous Motor

$656.70
$656.70
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2244, 1/3 Hp, 1800 Rpm, 262 Oz-in., 48R5BFYP, 230/460 Vac., Pacesetter Inverter Duty, Synchronous Motor.

Specifications

Speed (rpm) 1800
Fixed Speed Torque 185 Oz-in
Motor Output Power (hp) 1/3
Voltage (AC) 230/460
Current (amps) 2.4/1.2
Rated Frequency (Hz) 60
Variable Speed (rpm) 300-2400
Frequency Range (Hz) 10-80
SOA Torque At 10Hz 220
SOA Torque At 60Hz 262
SOA Torque At Max Hz 125
Length XH (inches) 7.31
Weight (lbs) 17
Connection Diagram 07410012
Motor Type 48R5BFYP
HP Decimal 0.3333
