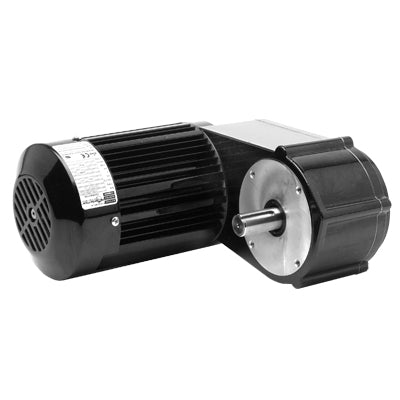

Bodine Electric 2248, 42R6BFPP-HG, 3/8 HP, 38 RPM, 480Lb-in, 45:1, 230Vac, 3 PH, Parallel Shaft AC Inverter Duty Gearmotor

Bodine Electric 2248, 42R6BFPP-HG, 3/8 HP, 38 RPM, 480Lb-in, 45:1, 230Vac, 3 PH, Parallel Shaft AC Inverter Duty Gearmotor

$962.36
$962.36
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2248, 42R6BFPP-HG, 3/8 HP, 38 RPM, 480Lb-in, 45:1, 230Vac, 3 PH, Parallel Shaft AC Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 38
Rated Torque (lb-in) 490
Motor HP 3/8
Volts 230
Hz 60
Phases 3
Amps 1.9
Gear Ratio 45:1
Variable Speed (rpm) 3.9-51
Frequency Range (Hz) 10-90
Torque At 10Hz 373
Torque At 60Hz 623
Torque At Max Hz 542
Radial Load (lbs) 444
Length XH (inch) 9.849
Weight (lbs) 16.5
Connection Diagram 07410007
Product Type 42R6BFPP-HG
HPDecimal 0.375
