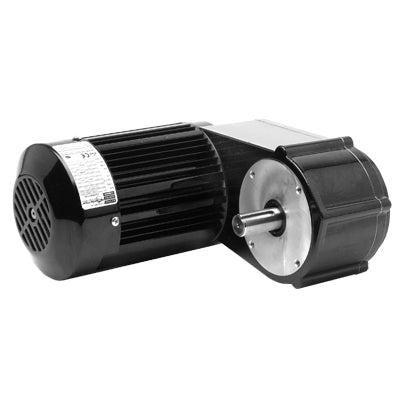

Bodine Electric 2249, 42R6BFPP-HG, 3/8 HP, 63 RPM, 289Lb-in, 27:1, 230Vac, 3 PH, Parallel Shaft AC Inverter Duty Gearmotor

Bodine Electric 2249, 42R6BFPP-HG, 3/8 HP, 63 RPM, 289Lb-in, 27:1, 230Vac, 3 PH, Parallel Shaft AC Inverter Duty Gearmotor

$962.36
$962.36
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2249, 42R6BFPP-HG, 3/8 HP, 63 RPM, 289Lb-in, 27:1, 230Vac, 3 PH, Parallel Shaft AC Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 63
Rated Torque (lb-in) 294
Motor HP 3/8
Volts 230
Hz 60
Phases 3
Amps 1.9
Gear Ratio 27:1
Variable Speed (rpm) 6.6-85
Frequency Range (Hz) 10-90
Torque At 10Hz 224
Torque At 60Hz 374
Torque At Max Hz 325
Radial Load (lbs) 403
Length XH (inch) 9.849
Weight (lbs) 16.5
Connection Diagram 07410007
Product Type 42R6BFPP-HG
HPDecimal 0.375
