Industrial Motors

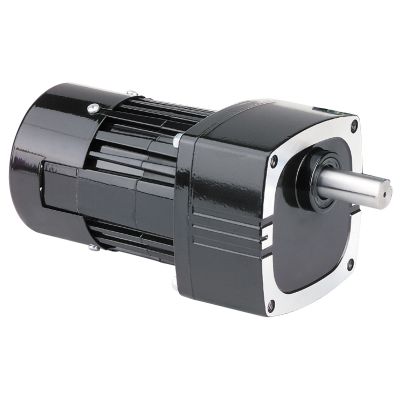

Bodine Electric 2251, 1/6 Hp, 19 Rpm, 90:1, 250 Lb-in., 34R4BEPP-E4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2251, 1/6 Hp, 19 Rpm, 90:1, 250 Lb-in., 34R4BEPP-E4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$676.42
$676.42
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric, 2251, 1/6 Hp, 19 Rpm, 90:1, 250 Lb-in., 34R4BEPP-E4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 19
Fixed Speed Torque 350 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 1.0
Rated Frequency (Hz) 60
Gear Ratio 90
Variable Speed (rpm) 1.3-24
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 350
SOA Torque At 60Hz 350
SOA Torque At Max Hz 350
Length XH (inches) 8.8
Weight (lbs) 11
Connection Diagram 07410881
Motor Type 34R4BFPP-FX4
HPDecimal 0.1667
