Industrial Motors

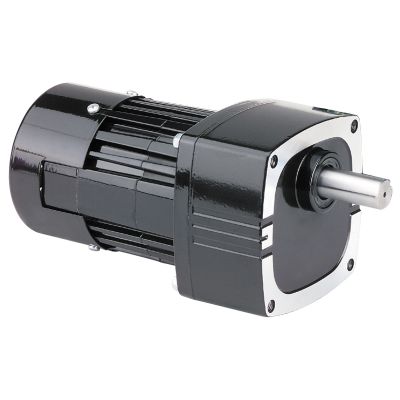

Bodine Electric, 2254, 1/6 Hp, 170 Rpm, 10:1, 45 Lb-in., 34R4BFPP-FX2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric, 2254, 1/6 Hp, 170 Rpm, 10:1, 45 Lb-in., 34R4BFPP-FX2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$644.59
$644.59
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2254, 1/6 Hp, 170 Rpm, 10:1, 45 Lb-in., 34R4BFPP-FX2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 170
Fixed Speed Torque 53 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 1.0
Rated Frequency (Hz) 60
Gear Ratio 10
Variable Speed (rpm) 12-218
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 43
SOA Torque At 60Hz 85
SOA Torque At Max Hz 74
Length XH (inches) 8.8
Weight (lbs) 11
Connection Diagram 07410881
Motor Type 34R4BFPP-FX2
HPDecimal 0.1667
