Industrial Motors

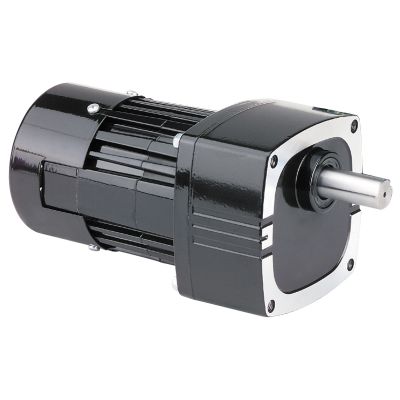

Bodine Electric 2261, 3/8 Hp, 85 Rpm, 20:1, 167 Lb-in., 42R6BEPP-F3, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2261, 3/8 Hp, 85 Rpm, 20:1, 167 Lb-in., 42R6BEPP-F3, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$818.61
$818.61
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2261, 3/8 Hp, 85 Rpm, 20:1, 167 Lb-in., 42R6BEPP-F3, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 85
Fixed Speed Torque (lb-in) 240
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Gear Ratio 20
Variable Speed (rpm) 8.8-115
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 187
SOA Torque At 60Hz 240
SOA Torque At Max Hz 240
Radial Load(lbs) 300
Length XH (inches) 9.58
Weight (lbs) 16.5
Connection Diagram 07410881
Motor Type 42R6BFPP-FX3
HPDecimal 0.375
