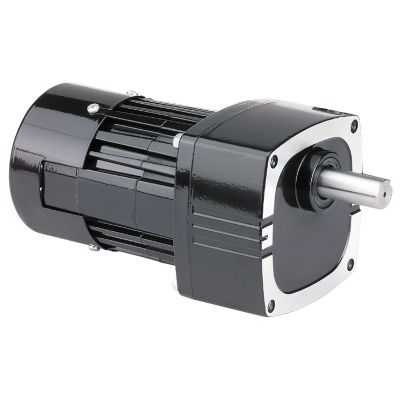

Bodine Electric 2262, 3/8 Hp, 170 Rpm, 10:1, 115 Lb-in., 42R6BEPP-F2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2262, 3/8 Hp, 170 Rpm, 10:1, 115 Lb-in., 42R6BEPP-F2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$761.11
$761.11
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2262, 3/8 Hp, 170 Rpm, 10:1, 115 Lb-in., 42R6BEPP-F2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 170
Fixed Speed Torque (lb-in) 123
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Gear Ratio 10
Variable Speed (rpm) 18-229
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 93
SOA Torque At 60Hz 124
SOA Torque At Max Hz 124
Radial Load (lbs) 300
Length XH (inches) 9.58
Weight (lbs) 16.5
Connection Diagram 07410007
Motor Type 42R6BFPP-FX2
HPDecimal 0.375
