Industrial Motors

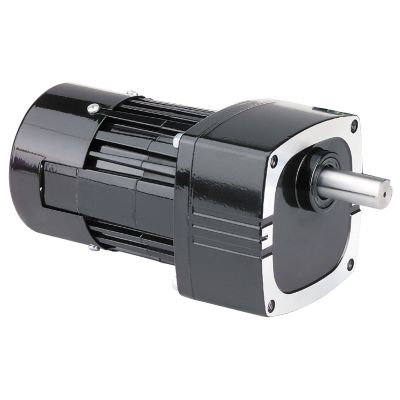

Bodine Electric 2263, 3/8 Hp, 340 Rpm, 5:1, 58 Lb-in., 42R6BEPP-F1, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2263, 3/8 Hp, 340 Rpm, 5:1, 58 Lb-in., 42R6BEPP-F1, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$761.11
$761.11
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2263, 3/8 Hp, 340 Rpm, 5:1, 58 Lb-in., 42R6BEPP-F1, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 340
Fixed Speed Torque (lb-in) 58
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Gear Ratio 5
Variable Speed (rpm) 35-459
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 48
SOA Torque At 60Hz 58
SOA Torque At Max Hz 58
Radial Load (lbs) 60
Length XH (inches) 9.58
Weight (lbs) 16.5
Connection Diagram 07410881
Motor Type 42R6BFPP-FX1
HPDecimal 0.375
