Industrial Motors

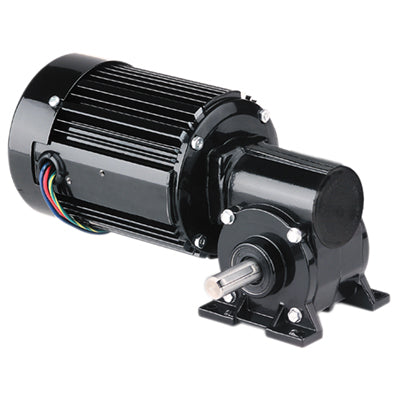

Bodine Electric 2270, 3/8 Hp, 23 Rpm, 75:1, 121 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2270, 3/8 Hp, 23 Rpm, 75:1, 121 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$870.06
$870.06
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2270, 3/8 Hp, 23 Rpm, 75:1, 121 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 23
Fixed Speed Torque (lb-in) 121
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Gear Ratio 75
Variable Speed (rpm) 2.4-31
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 116
SOA Torque At 60Hz 116
SOA Torque At Max Hz 116
Connection Diagram 07410007
Motor Type 42R6BFPP-5N
Length XH (inches) 10.75
Weight (lbs) 17.5
HPDecimal 0.375
