Industrial Motors

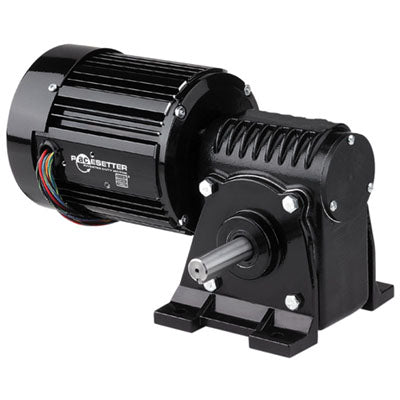

Bodine Electric 2281, 3/4 Hp, 47 Rpm, 36:1, 285 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2281, 3/4 Hp, 47 Rpm, 36:1, 285 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$1,213.53
$1,213.53
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2281, 3/4 Hp, 47 Rpm, 36:1, 285 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 47
Fixed Speed Torque (lb-in) 285
Motor Output Power (hp) 3/4
Voltage (AC) 230/460
Current (amps) 2.7/1.3
Rated Frequency (Hz) 60
Gear Ratio 36
Variable Speed (rpm) 4.4-63
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 262
SOA Torque At 60Hz 262
SOA Torque At Max Hz 262
Connection Diagram 07410012
Motor Type 48R6BFPP-5H
HPDecimal 0.75
Length XH (inch) 13.4
Weight (lbs) 40
View full details

Attachments
