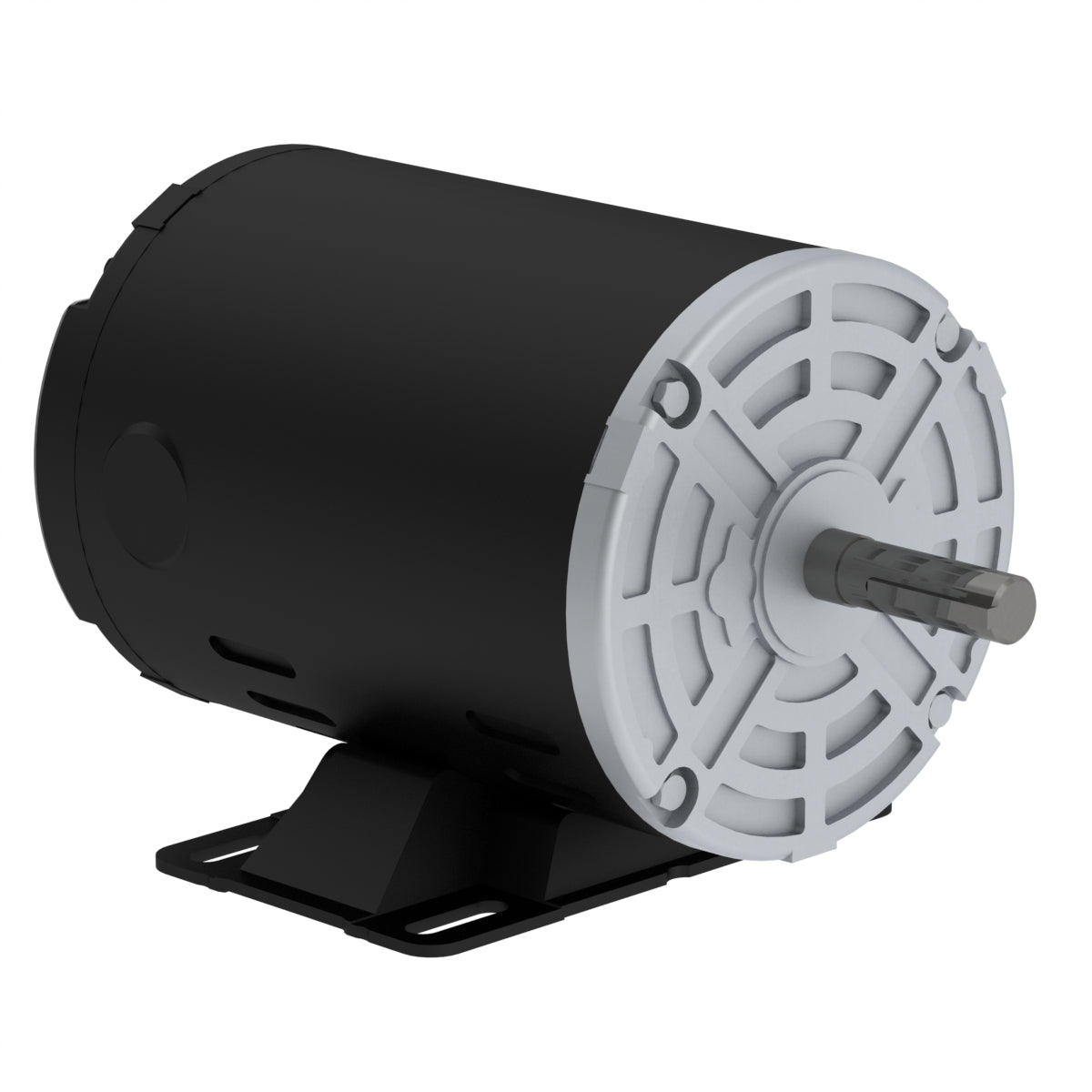

Weg Electric .2518OS1BSP48-S, 1/25 Hp, 48 Frame, 1800 RPM, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel Split Phase.

.2518OS1BSP48-S, 1/25 Hp, 48 Frame, 1800 RPM, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel Split Phase.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.25 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame 48
Output 0.25 HP (0.18 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1710 rpm
Slip 5.00 %
Rated voltage 115/208-230 V
Rated current 4.24/2.20-2.12 A
L. R. Amperes 25.4/13.2-12.7 A
LRC 6.0x(Code N)
No load current 4.00/1.72-2.00 A
Rated torque 0.768 ft.lb
Locked rotor torque 150 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Design N
Insulation Class F
Service factor 1.35
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
