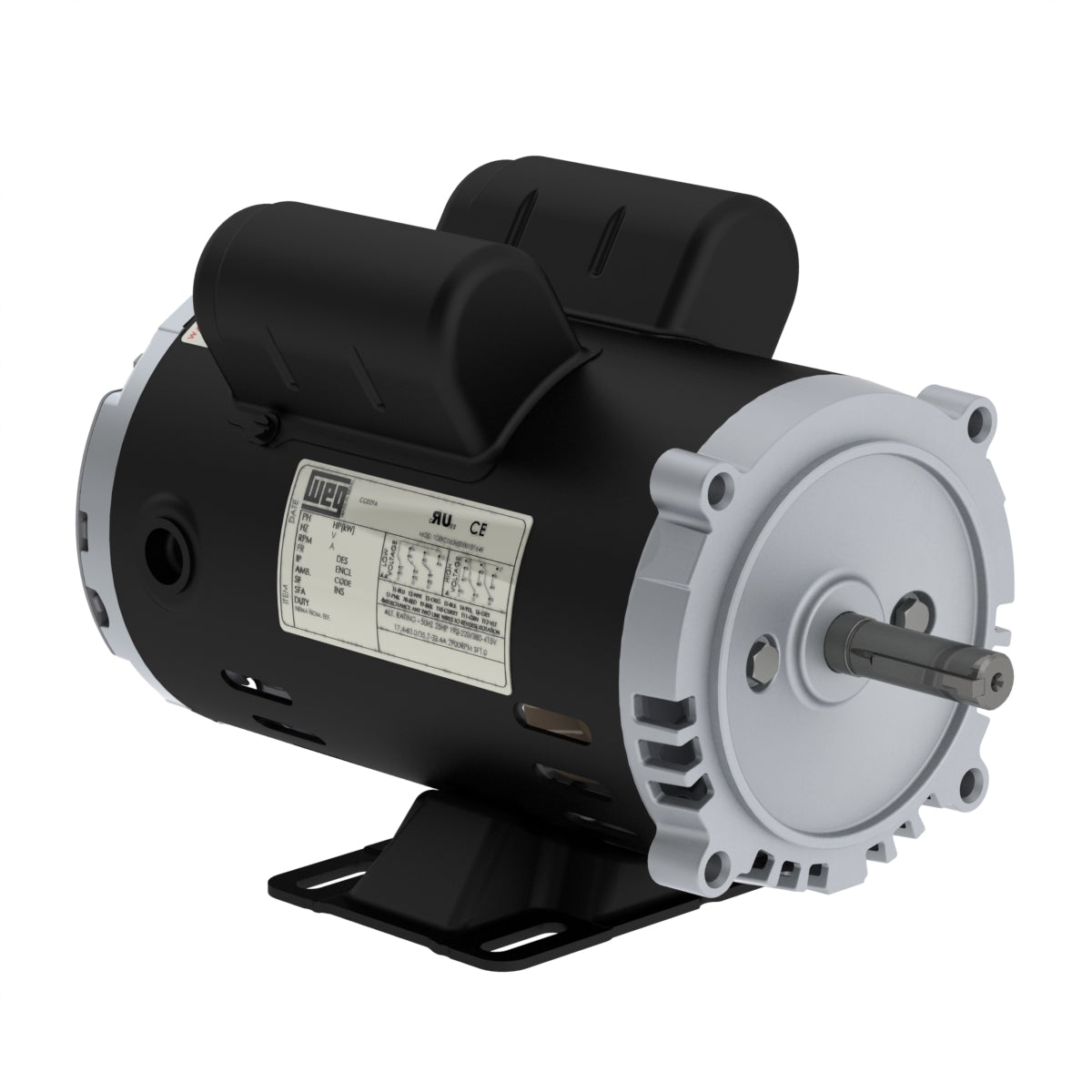

Weg Electric .2536OT1BW56C-S, 1/4 Hp, 3600 Rpm, W56C FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

.2536OT1BW56C-S, 1/4 Hp, 3600 Rpm, W56C FR, 115/208-230 Vac, ODP, 1 PH, Foot-mounted, Rolled Steel.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 0.25 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP

Frame W56C
Output 0.25 HP (0.18 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 115/208-230 V
Rated current 2.50/1.38-1.25 A
L. R. Amperes 22.0/12.1-11.0 A
LRC 8.8x(Code M)
No load current 1.00/0.431-0.500 A
Rated torque 0.374 ft.lb
Locked rotor torque 280 %
Breakdown torque 310 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.0211 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.35 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
