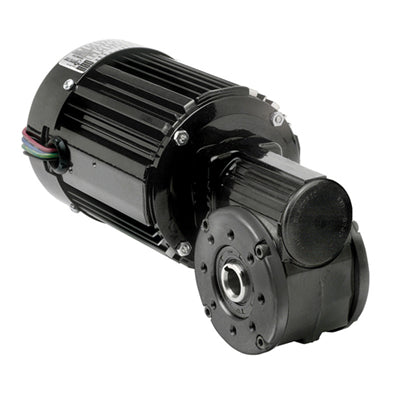

Bodine Electric, 2670, 42R6BFPP-5L/H, 3/8 HP, 23 RPM, 121 Lb-in, 75:1, 230/460 Vac, 3 PH, Hollow Shaft, Inverter Duty AC Gearmotor

Bodine Electric, 2670, 42R6BFPP-5L/H, 3/8 HP, 23 RPM, 121 Lb-in, 75:1, 230/460 Vac, 3 PH, Hollow Shaft, Inverter Duty AC Gearmotor

$965.46
$965.46
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2670, 42R6BFPP-5L/H, 3/8 HP, 23 RPM, 121 Lb-in, 75:1, 230/460 Vac, 3 PH, Hollow Shaft, Inverter Duty AC Gearmotor

SPECIFICATIONS

Speed (rpm) 23
Fixed Speed Torque (lb-in) 121
Motor Output Power (hp) 3/8
Voltage (AC) 230/460
Current (amps) 1.90/0.95
Rated Frequency (Hz) 60
Gear Ratio 75
Variable Speed (rpm) 2.4-31
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 121
SOA Torque At 60Hz 121
SOA Torque At Max Hz 116
Connection Diagram 07410012
Motor Type 42R6BFPP-5L/H
Length XH (inches) 10.75
Weight (lbs) 17.5
HPDecimal 0.375
