Industrial Motors

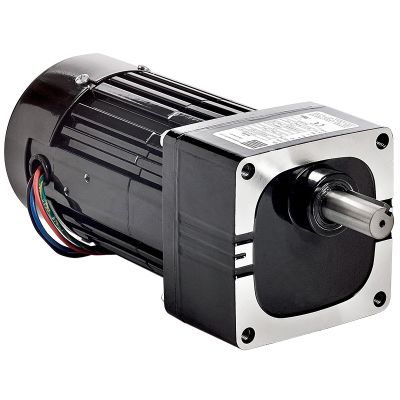

Bodine Electric, 2803, 1/6 Hp, 5 Rpm, 312:1, 300Lb-in.,34R6BFCI-WX4, 230Vac., AC Capacitor Start Gearmotor, Parallel Shaft

Bodine Electric, 2803, 1/6 Hp, 5 Rpm, 312:1, 300Lb-in.,34R6BFCI-WX4, 230Vac., AC Capacitor Start Gearmotor, Parallel Shaft

$716.30
$716.30
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2803, 1/6 Hp, 5 Rpm, 312:1, 300Lb-in.,34R6BFCI-WX4, 230Vac., AC Capacitor Start Gearmotor, Parallel Shaft

SPECIFICATIONS

Speed (rpm) 5.4
Fixed Speed Torque (lb-in) 210
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 312.4
Variable Speed (rpm) 0.4 to 7.0
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 210
SOA Torque At 60Hz 210
SOA Torque At Max Hz 210
Radial Load (lbs) 300
Length XH (inches) 7.96
Weight (lbs) 12
Connection Diagram 07410883
Motor Type 34R4BFPP-WX4
HPDecimal 0.1667
