Industrial Motors

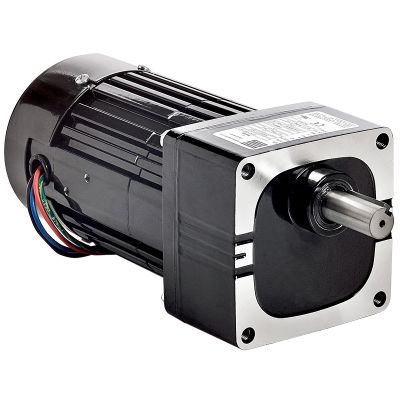

Bodine Electric, 2807, 1/6 Hp, 31 Rpm, 55:1, 300 Lb-in.,34R4BFPP-WX3, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric, 2807, 1/6 Hp, 31 Rpm, 55:1, 300 Lb-in.,34R4BFPP-WX3, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$569.86
$569.86
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2807, 1/6 Hp, 31 Rpm, 55:1, 300 Lb-in.,34R4BFPP-WX3, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 31
Fixed Speed Torque (lb-in) 190
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 54.7
Variable Speed (rpm) 2.2 to 40
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 190
SOA Torque At 60Hz 190
SOA Torque At Max Hz 190
Radial Load (lbs) 300
Length XH (inches) 7.96
Weight (lbs) 10
Connection Diagram 07410012
Motor Type 34R4BFPP-WX3
HPDecimal 0.1667
