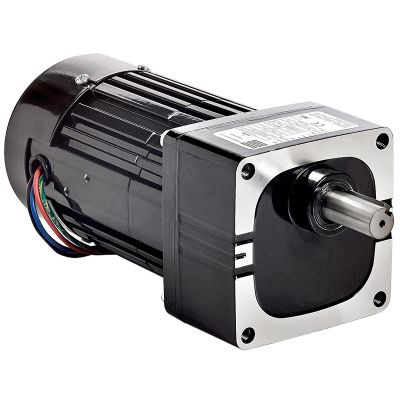

Bodine Electric, 2809, 1/6 Hp, 57 Rpm, 30:1, 290 Lb-in.,34R4BFPP-WX3, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric, 2809, 1/6 Hp, 57 Rpm, 30:1, 290 Lb-in.,34R4BFPP-WX3, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$678.38
$678.38
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2809, 1/6 Hp, 57 Rpm, 30:1, 290 Lb-in.,34R4BFPP-WX3, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 57
Fixed Speed Torque (lb-in) 150
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 29.7
Variable Speed (rpm) 4.0 to 73
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 120
SOA Torque At 60Hz 150
SOA Torque At Max Hz 150
Radial Load (lbs) 290
Length XH (inches) 7.96
Weight (lbs) 10
Connection Diagram 07410012
Motor Type 34R4BFPP-WX3
HPDecimal 0.1667
