Industrial Motors

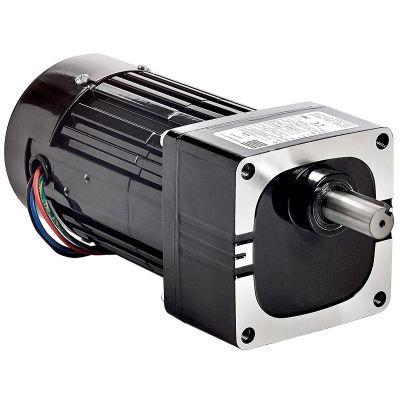

Bodine Electric, 2829, 1/6 Hp, 83 Rpm, 20:1, 268 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric, 2829, 1/6 Hp, 83 Rpm, 20:1, 268 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$640.47
$640.47
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2829, 1/6 Hp, 83 Rpm, 20:1, 268 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 83
Fixed Speed Torque (lb-in) 109
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 20.4
Variable Speed (rpm) 5.9 to 107
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 87
SOA Torque At 60Hz 109
SOA Torque At Max Hz 109
Radial Load (lbs) 268
Length XH (inches) 7.96
Weight (lbs) 10
Connection Diagram 07410883
Motor Type 34R4BFPP-WX2
HPDecimal 0.1667
View full details

Attachments
