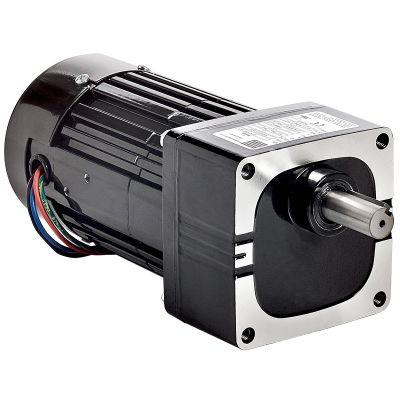

Bodine Electric, 2830, 1/6 Hp, 123 Rpm, 14:1, 250 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric, 2830, 1/6 Hp, 123 Rpm, 14:1, 250 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$640.47
$640.47
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2830, 1/6 Hp, 123 Rpm, 14:1, 250 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 123
Fixed Speed Torque (lb-in) 70
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 13.8
Variable Speed (rpm) 8.7 to 158
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 56
SOA Torque At 60Hz 70
SOA Torque At Max Hz 70
Radial Load (lbs) 250
Length XH (inches) 7.96
Weight (lbs) 10
Connection Diagram 07410883
Motor Type 34R4BFPP-WX2
HPDecimal 0.1667
