Industrial Motors

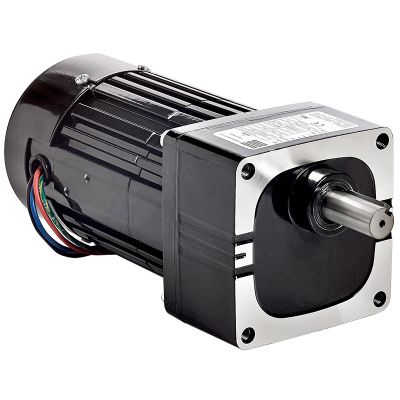

Bodine Electric, 2831, 1/6 Hp, 181 Rpm, 9:1, 226 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric, 2831, 1/6 Hp, 181 Rpm, 9:1, 226 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$640.47
$640.47
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2831, 1/6 Hp, 181 Rpm, 9:1, 226 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 181
Fixed Speed Torque (lb-in) 45
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 9.4
Variable Speed (rpm) 13 to 232
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 36
SOA Torque At 60Hz 45
SOA Torque At Max Hz 45
Radial Load (lbs) 226
Length XH (inches) 7.96
Weight (lbs) 10
Connection Diagram 07410883
Motor Type 34R4BFPP-WX2
HPDecimal 0.1667
View full details

Attachments
