Industrial Motors

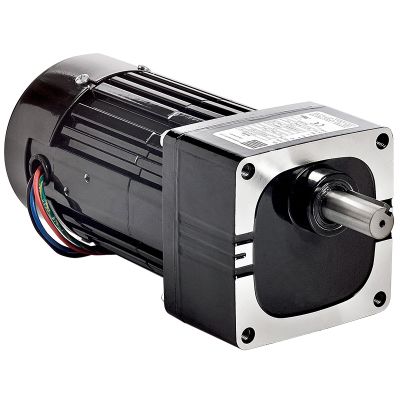

Bodine Electric, 2833, 1/6 Hp, 447 Rpm, 4:1, 179 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric, 2833, 1/6 Hp, 447 Rpm, 4:1, 179 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$538.01
$538.01
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2833, 1/6 Hp, 447 Rpm, 4:1, 179 Lb-in.,34R4BFPP-WX2, 230Vac., Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

SPECIFICATIONS

Speed (rpm) 447
Fixed Speed Torque (lb-in) 18
Motor Output Power (hp) 1/6
Voltage (AC) 230/460
Current (amps) 1.0/0.5
Rated Frequency (Hz) 60
Gear Ratio 3.8
Variable Speed (rpm) 32 to 574
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 14
SOA Torque At 60Hz 18
SOA Torque At Max Hz 18
Radial Load (lbs) 179
Length XH (inches) 7.96
Weight (lbs) 10
Connection Diagram 07410883
Motor Type 34R4BFPP-WX2
HPDecimal 0.1667
