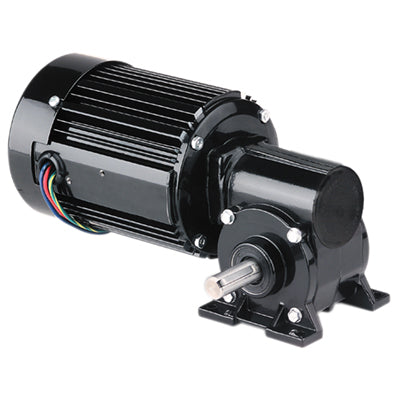

Bodine Electric 2874, 3/8 Hp, 340 Rpm, 5:1, 54 Lb-in, 42R6BFPP-5N, 230/460 Vac, 3 PH, Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2874, 3/8 Hp, 340 Rpm, 5:1, 54 Lb-in, 42R6BFPP-5N, 230/460 Vac, 3 PH, Right Angle, AC Pacesetter Inverter Duty Gear Motor

$781.71
$781.71
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2874, 3/8 Hp, 340 Rpm, 5:1, 54 Lb-in, 42R6BFPP-5N, 230/460 Vac, 3 PH, Right Angle, AC Pacesetter Inverter Duty Gear Motor

SPECIFICATIONS

Speed (rpm) 340
Fixed Speed Torque (lb-in) 54
Motor Output Power (hp) 3/8
Voltage (AC) 230/460
Current (amps) 1.9/.95
Rated Frequency (Hz) 60
Gear Ratio 5
Variable Speed (rpm) 35-458
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 38
SOA Torque At 60Hz 68
SOA Torque At Max Hz 59
Connection Diagram 07410012
Motor Type 42R6BFPP-5N
Length XH (inches) 10.75
Weight (lbs) 17.5
HPDecimal 0.375
